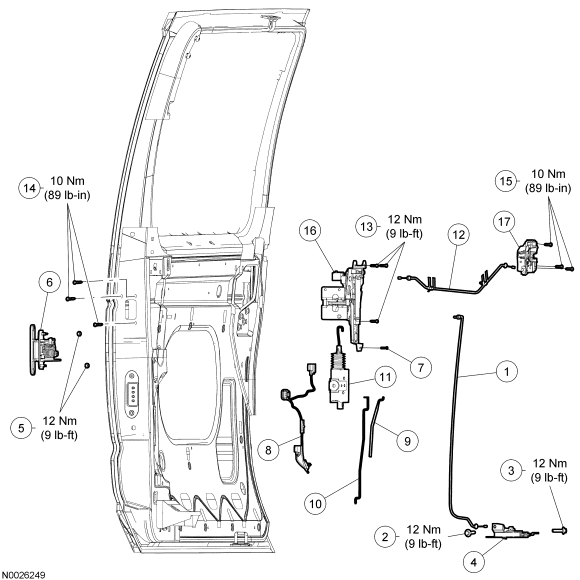

Sliding Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 264A64 | Lower sliding door latch actuating cable |
| 2 | - | Lower sliding door latch bolt |
| 3 | N621906 | Lower sliding door latch nut |
| 4 | 264A32 | Lower sliding door latch |
| 5 | - | Exterior sliding door handle nuts (2 required) |
| 6 | 26600 | Exterior sliding door handle |
| 7 | N805995 | Door lock actuator rivet |
| 8 | - | Wiring harness (part of 14026) |
| 9 | 26596 | Exterior sliding door handle actuating rod |
| 10 | 26400 | Door lock cylinder actuating rod |
| 11 | 218A42 | Door lock actuator |
| 12 | 266A46 | Rear sliding door latch actuating cable |
| 13 | N806679 | Sliding door remote control bolts (inner) (3 required) |
| 14 | N806679 | Sliding door remote control bolts (front) (3 required) |
| 15 | 264A00 | Rear sliding door latch bolts (3 required) |
| 16 | 26404 | Sliding door remote control |
| 17 | 264A26 | Rear sliding door latch |
- For additional information, refer to the procedures.
