Rear Door Handles, Locks and Latches - Exploded View, Single Latch
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Standard cargo door shown, E-Guard Cargo ProtectionTM
door similar.

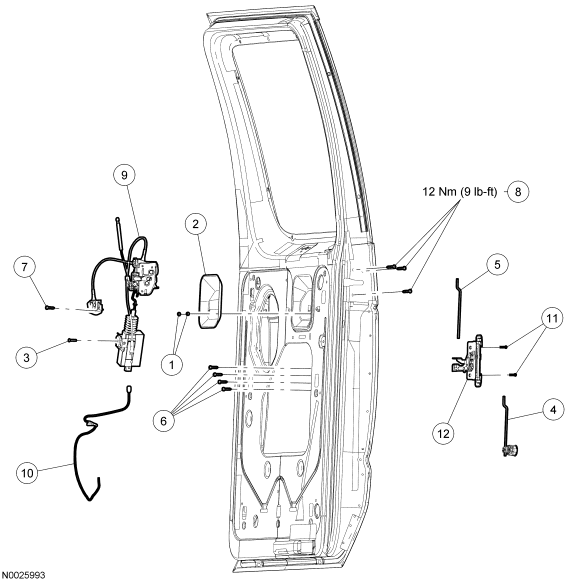

Fig 1: Exploded View Of Single Latch Rear Door Handles, Locks and Latches With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Interior door handle nuts (2 required) |
| 2 | - | Interior door handle |
| 3 | - | Power door lock actuator rivet |
| 4 | 1526 | Door lock cylinder actuating rod |
| 5 | 1522 | Exterior door handle actuating cable (rear door), Exterior door handle actuating rod (side door) |
| 6 | - | License plate housing screws (4 required) rear door only |
| 7 | - | Remote control screw |
| 8 | N806679 | Door latch screws (3 required) |
| 9 | 43289 | Door latch |
| 10 | - | Wiring harness |
| 11 | - | Exterior door handle rivets (2 required) side door only |
| 12 | - | Exterior door handle |
- For additional information, refer to the procedures.
