Rear Door Handles, Locks and Latches - Exploded View, Double Latch
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

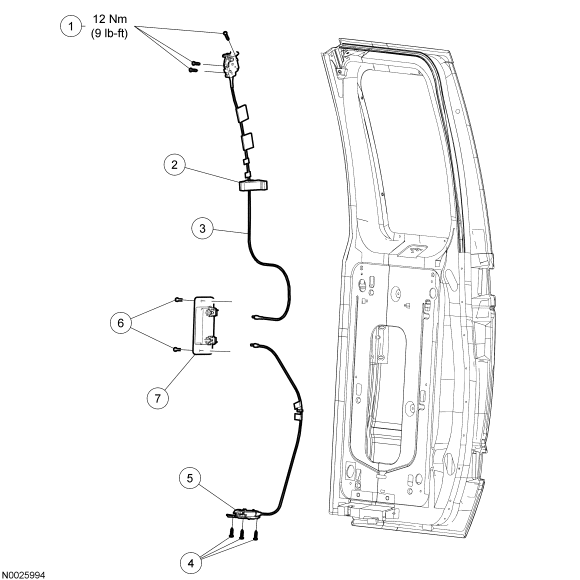

Fig 1: Exploded View Of Double Latch Rear Door Handles, Locks and Latches With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Upper door latch screws (3 required) |
| 2 | - | Upper door latch cable locator |
| 3 | 26502 | Upper door latch |
| 4 | - | Lower door latch screws (side door 2 required, rear door 3 required) |
| 5 | 264A65 | Lower door latch |
| 6 | - | Interior door handle rivets (2 required) |
| 7 | 43401 | Interior door handle |
- For additional information, refer to the procedures.
