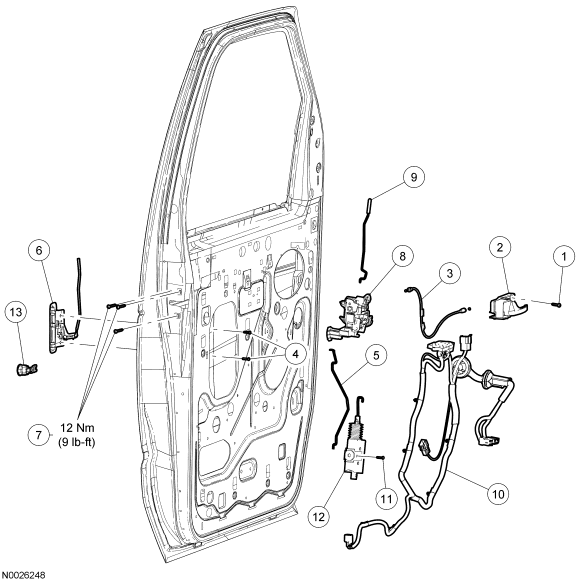

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH door shown, RH door similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 55928 | Interior door handle screw |
| 2 | 21818/21819 | Interior door handle (RH/LH) |
| 3 | 221A00/ 221A01 | Interior door handle actuating cable (RH/LH) |
| 4 | 388047 | Rivets (3 required) |
| 5 | 22134/22135 | Door lock cylinder actuating rod (RH/LH) |
| 6 | 22404/22405 | Exterior door handle (RH/LH) |
| 7 | N806679 | Front door latch screws (3 required) |
| 8 | 21812/21813 | Front door latch (RH/LH) |
| 9 | 21812/21813 | Push button rod (RH/LH) |
| 10 | 14630/14631 | Wiring harness |
| 11 | N806772 | Rivet |
| 12 | 218A42 | Door lock actuator |
| 13 | 22050 | Door lock cylinder |
- For additional information, refer to the procedures.
