Turbocharger Inlet Y-Pipe: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada) |
ESE-M12A4-A |

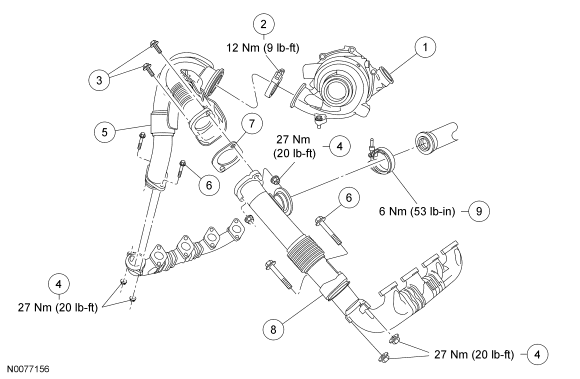

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K682 | Turbocharger |
| 2 | 8287 | Turbocharger-to-turbocharger inlet Y-pipe clamp |
| 3 | W300006 | LH turbocharger inlet Y-pipe-to-RH turbocharger inlet Y-pipe bolts (2 required) |
| 4 | W300051 | Turbocharger inlet Y-pipe nuts (6 required) |
| 5 | 6K854 | LH turbocharger inlet Y-pipe |
| 6 | W300013 | Turbocharger inlet Y-pipe-to-exhaust manifold bolts (4 required) |
| 7 | 6N640 | Turbocharger inlet Y-pipe gasket |
| 8 | 6K854 | RH turbocharger inlet Y-pipe |
| 9 | 8287 | Turbocharger inlet Y-pipe-to-EGR clamp |
