Expedition, F150 Pickup & Navigator
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2001 Mercury Villager, 2001 Mercury Mountaineer, 2001 Lincoln Navigator, 2001 Ford Windstar, and 2001 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

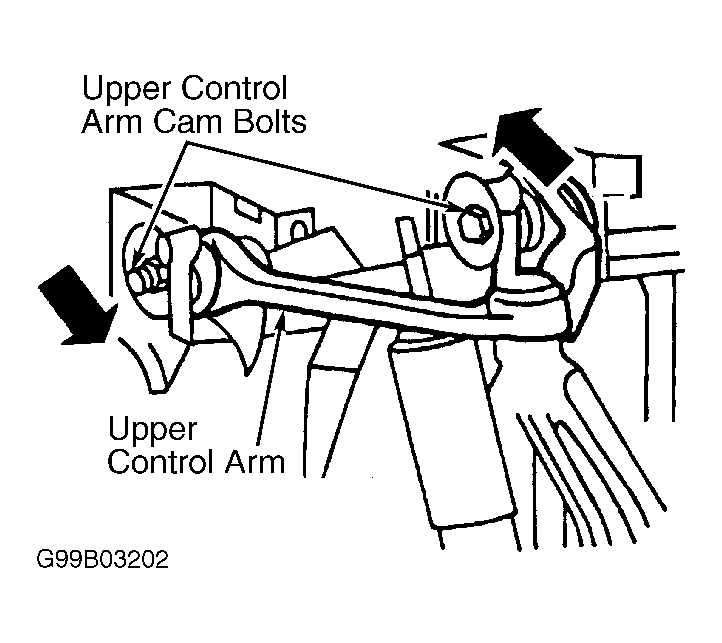

To adjust caster and camber, loosen upper control arm cam bolts. Turn cam bolt as necessary to obtain correct camber or caster specification. See Fig 1. Tighten upper control arm cam bolts to specification when adjustment is complete. See TORQUE SPECIFICATIONS .
