Camber & Caster Adjustment: Escape
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2001 Mercury Villager, 2001 Mercury Mountaineer, 2001 Lincoln Navigator, 2001 Ford Windstar, and 2001 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

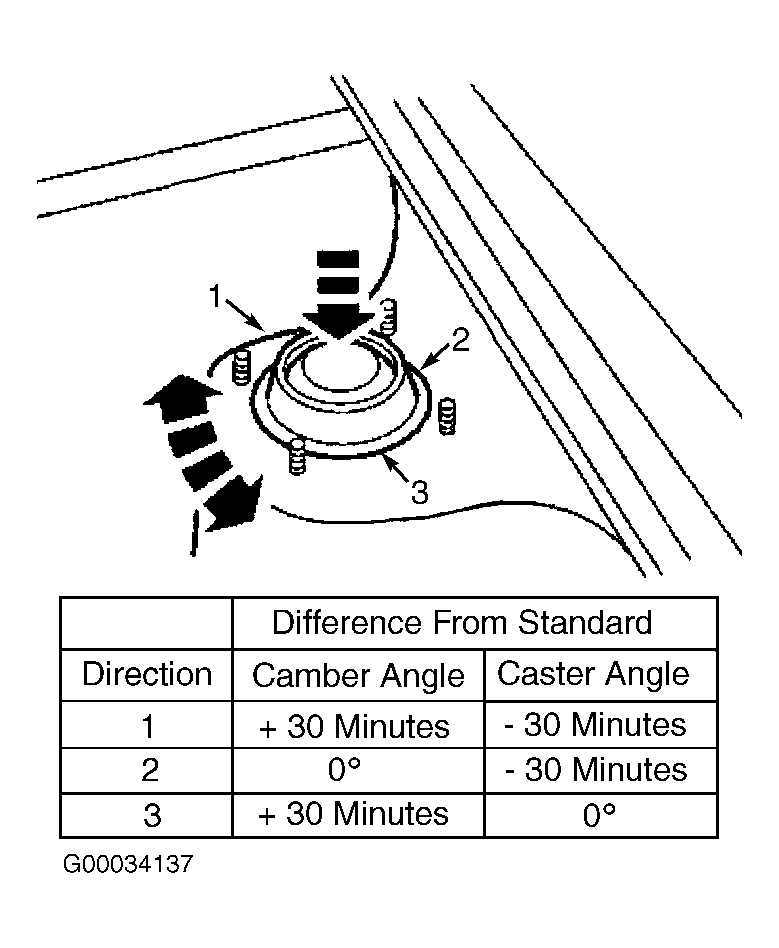

Raise and support vehicle. Remove front shock upper mount bracket nuts. Push front shock upper mount bracket down and turn to desired position to set caster and camber. See Fig 1. Tighten front shock upper mount bracket nuts to specification. See TORQUE SPECIFICATIONS .
