Checking Procedures: Windstar

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2001 Mercury Villager, 2001 Mercury Mountaineer, 2001 Lincoln Navigator, 2001 Ford Windstar, and 2001 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure dimension "A" between bottom of front ball joint and floor. Measure dimension "B" between center of front lower control arm mounting bolt and floor. Subtract dimension "A" from dimension "B". This is the riding height. See Fig 1. See RIDE HEIGHT SPECIFICATIONS (WINDSTAR)  table.
  2. Measure rear ride height between vehicle body and rear axle. See Fig 1. See RIDE HEIGHT SPECIFICATIONS (WINDSTAR)  table.
RIDE HEIGHT SPECIFICATIONS (WINDSTAR)

Application In. (mm)
Windstar
Front 2.03-2.69 (51.6-68.3)
Rear 6.12-7.08 (155.4-179.8)

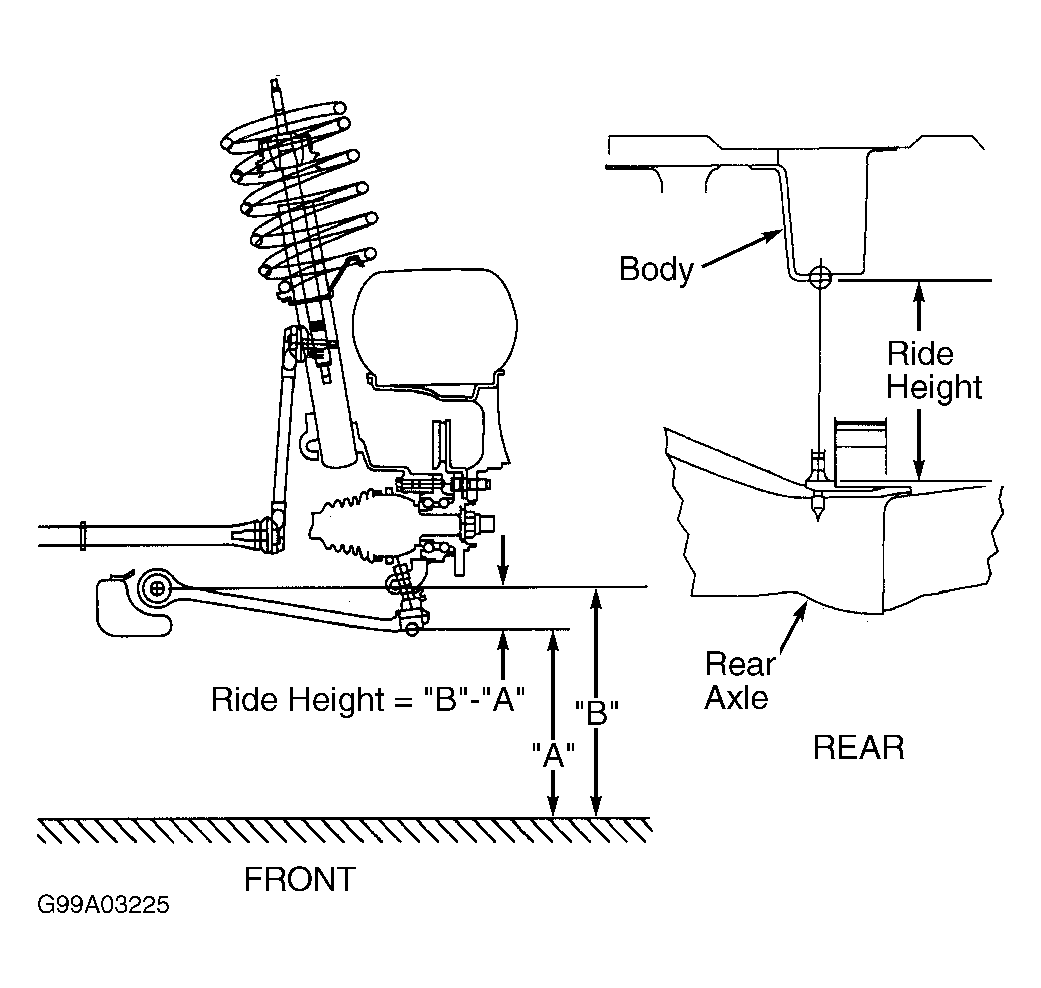

Fig 1: Ride Height Measuring Points (Windstar)
G99A03225Courtesy of FORD MOTOR CO.
