Floor Jack: Villager

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2001 Mercury Villager, 2001 Mercury Mountaineer, 2001 Lincoln Navigator, 2001 Ford Windstar, and 2001 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

If jacking entire vehicle, raise and support rear of vehicle first. To raise front of vehicle, position floor jack under front frame member behind bumper. Place safety stands under frame at lift points. To raise rear of vehicle, position floor jack under rear axle housing. See Fig 1.

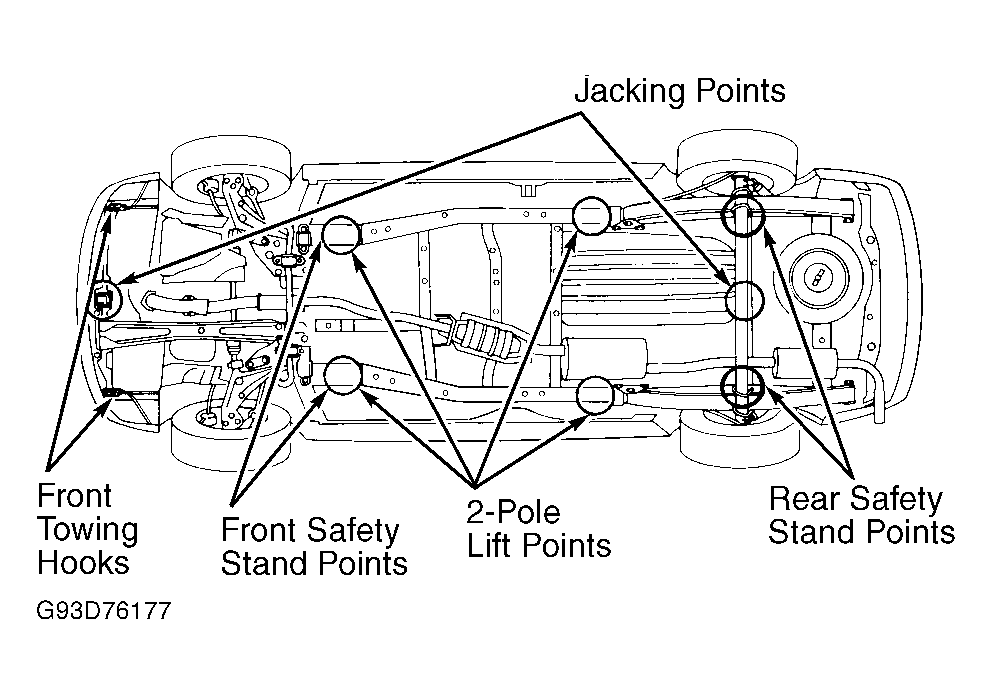

Fig 1: Hoisting & Jacking Contact Points (Villager)
G93D76177Courtesy of FORD MOTOR CO.
