Wheel and Tire - Single Rear Wheel (SRW): Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

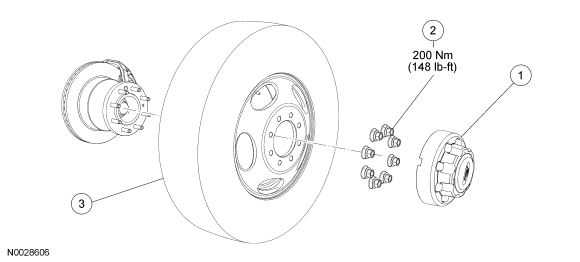

Fig 1: Exploded View Of Single Rear Wheel - 8 Lug Wheel With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1A096	Wheel cover
2	1012	Wheel nut (8 required)
3	1007/1015	Wheel/tire assembly
