Fuel Pump Module: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Fuel Drain Hose | 310-102 | |
| Fuel Storage Tanker | 164-R3202 or equivalent |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

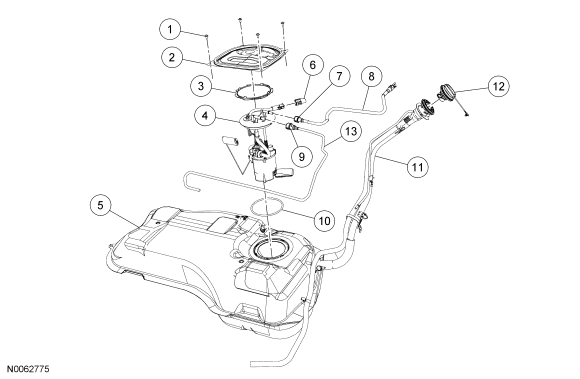

| Item | Part Number | Description |
|---|---|---|
| 1 | W705909S | Fuel pump (FP) module access cover screw (4 required) |
| 2 | 78111 | FP module access cover |
| 3 | 9C385A | FP module lock ring |
| 4 | 9H307 | FP module |
| 5 | 9002 | Fuel tank |
| 6 | 14A464 | FP module electrical connector |
| 7 | - | Fuel vapor tube-to-FP module quick connect coupling (part of 9B034A) |
| 8 | 9B034A | Fuel vapor tube |
| 9 | - | Fuel supply tube assembly-to-fuel tank quick connect coupling (part of 9D668A) |
| 10 | 9276 | FP module O-ring seal |
| 11 | 9034A | Fuel tank filler pipe |
| 12 | 9030A | Fuel tank filler cap |
