Fuel Tank and Filler Pipe
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

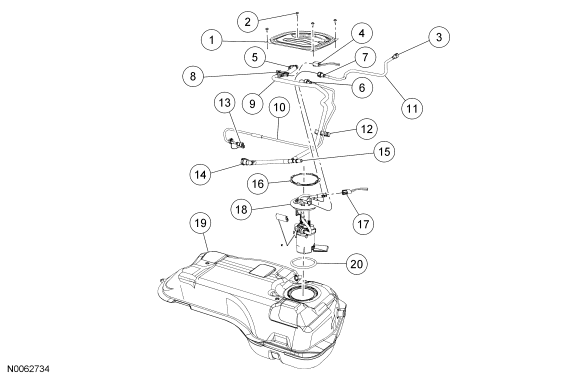

NOTE:
Components removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 78111 | Fuel pump (FP) module access cover |
| 2 | W705909S | FP module access cover screw (4 required) |
| 3 | - | Fuel vapor recirculation tube-to-fuel tank filler pipe quick connect coupling (part of 9B034A) |
| 4 | 14A464 | Fuel tank pressure (FTP) sensor electrical connector |
| 5 | - | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9D668A) |
| 6 | - | Fuel supply tube-to-FP module quick connect coupling (part of 9289A) |
| 7 | - | Fuel vapor recirculation tube-to-FP module quick connect coupling (part of 9B034A) |
| 8 | - | FTP sensor (part of 9D668A) |
| 9 | 9D668A | Fuel vapor tube assembly |
| 10 | 9289A | Fuel supply tube |
| 11 | 9B034A | Fuel vapor recirculation tube |
| 12 | - | Fuel tube bundle separator clip (part of 9289A) |
| 13 | - | Fuel supply tube-to-fuel filter spring-lock coupling (part of 9289A) |
| 14 | - | Fuel vapor tube assembly-to-evaporative emission (EVAP) canister quick connect coupling (part of 9D668A) |
| 15 | - | Fuel vapor tube assembly-to-fuel vapor tube nipple (part of 9D668A) |
| 16 | 9C385A | FP module lock ring |
| 17 | 14A464 | FP module electrical connector |
| 18 | 9H307 | FP module |
| 19 | 9002 | Fuel tank |
| 20 | 9276 | FP module O-ring |
NOTE:
Components removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 21 | 9002 | Fuel tank |
| 22 | 9N041 | RH fuel tank strap |
| 23 | W705100 | Fuel tank strap bolt (2 required) |
| 24 | 9N041 | LH fuel tank strap |
| 25 | - | LH parking brake cable pin-type retainer (part of 2A823) |
NOTE:
Components removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 26 | 9002 | Fuel tank |
| 27 | - | Fuel tank filler pipe hose clamp (part of 9034A) |
| 28 | 9034A | Fuel tank filler pipe |
| 29 | 9069A | Dust cover |
| 30 | W713115 | Fuel tank filler pipe flange screw (2 required) |
| 31 | 9030A | Fuel tank filler cap |
| 32 | - | Fuel tank filler cap tether pin-type retainer (part of 9030A) |
| 33 | 9A288A | Fuel tank filler pipe shield |
| 34 | W525173 | Fuel tank filler pipe shield rivet (3 required) |
| 35 | W503921 | Fuel tank filler pipe bracket bolt |
| 36 | - | Fuel tank filler pipe pin-type retainer (part of 9034A) |
| 37 | - | Fuel tank filler pipe retainer clip (part of 9034A) |
| 38 | - | Fuel tank filler pipe vent tube (part of 9034A) |
- For additional information, refer to the procedures in this article.
