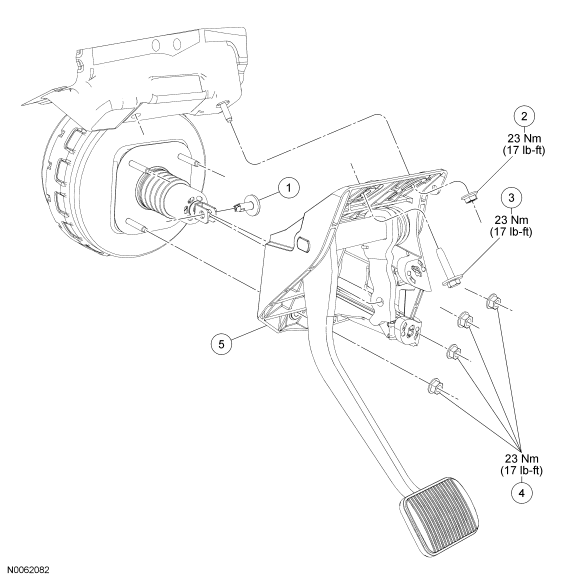

Brake Pedal And Bracket: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
2L523 |
Brake booster push rod clevis locking pin |
| 2 |
W710343 |
Brake pedal bracket upper nut |
| 3 |
W707144 |
Brake pedal bracket upper bolt |
| 4 |
W520413 |
Brake booster nuts (4 required) |
| 5 |
2455 |
Brake pedal and bracket assembly |
