Parking Brake Cable - Rear, LH: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

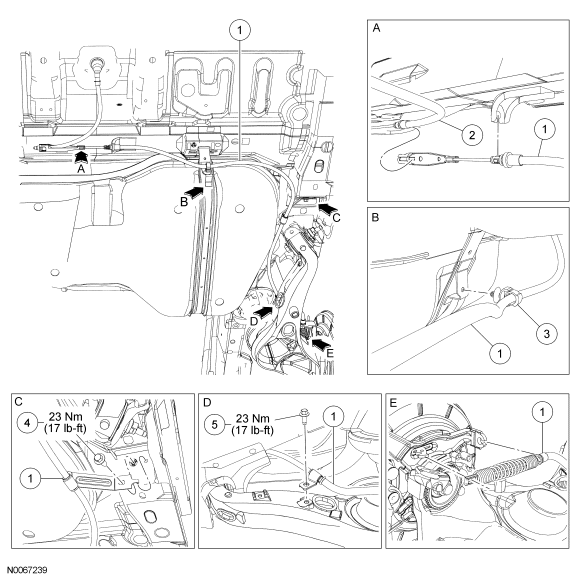

Rear disc shown, rear drum similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
2A823 LR |
Parking brake cable |
| 2 |
2853 |
Front parking brake cable |
| 3 |
- |
Pin-type retainer (part of 2A604 |
| 4 |
W707375 |
Parking brake cable bracket bolt |
| 5 |
W500222 |
Parking brake cable bracket bolt |
