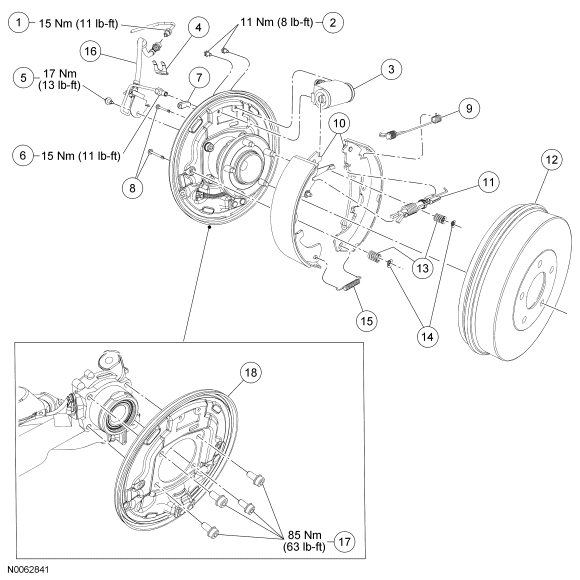

Drum Brake System
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake tube fitting |
| 2 | 2276 | Wheel cylinder bolts (2 required) |
| 3 | 2261 | Wheel cylinder |
| 4 | 2B223 | Brake flexible hose clip |
| 5 | W500220 | Brake flexible hose bracket bolt |
| 6 | - | Brake flexible hose fitting |
| 7 | 2911 | Plug |
| 8 | 2L265 | Brake shoe retaining pins (2 required) |
| 9 | 2296 | Upper return spring |
| 10 | 2L362 | Brake shoe (kit) |
| 11 | 2315 RH/ 2314 LH | Self-adjuster assembly |
| 12 | 1126 | Brake drum |
| 13 | 2B026 | Brake shoe retaining springs (2 required) |
| 14 | - | Brake shoe retaining spring plates (2 required) |
| 15 | 2035 | Lower return spring |
| 16 | 2C339 LH/ 2C338 RH | Brake flexible hose |
| 17 | 2216 | Backing plate bolts (4 required) |
| 18 | 2211 LH/ 2212 RH | Backing plate |
- For additional information, refer to the procedures in this article.
