Throttle Body: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

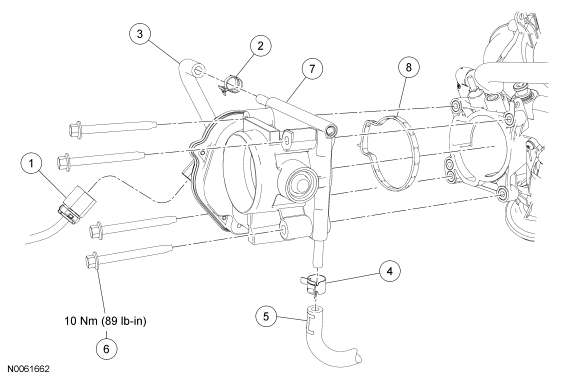

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Electronic throttle body electrical connector (part of 12B637) |
| 2 | W527302-S | Coolant inlet hose clamp |
| 3 | 18K580 | Coolant inlet hose |
| 4 | W52592 | Coolant outlet hose clamp |
| 5 | 9F475 | Coolant outlet hose |
| 6 | W500305 | Throttle body-to-upper intake manifold bolt (4 required) |
| 7 | 9F991 | Electronic throttle body |
| 8 | 9E936 | Gasket |
