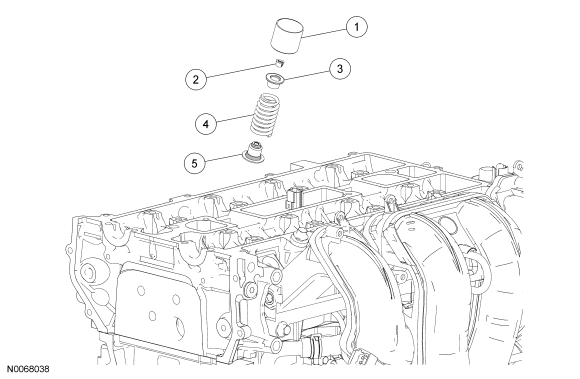

Valve Train Components
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
6500 |
Valve tappet (16 required) |
| 2 |
6518 |
Valve collet (16 required) |
| 3 |
6514 |
Valve spring retainer (16 required) |
| 4 |
6513 |
Valve spring (16 required) |
| 5 |
6517 |
Valve seal (16 required) |
- For additional information, refer to the procedures in this article.
