Intake Manifold: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

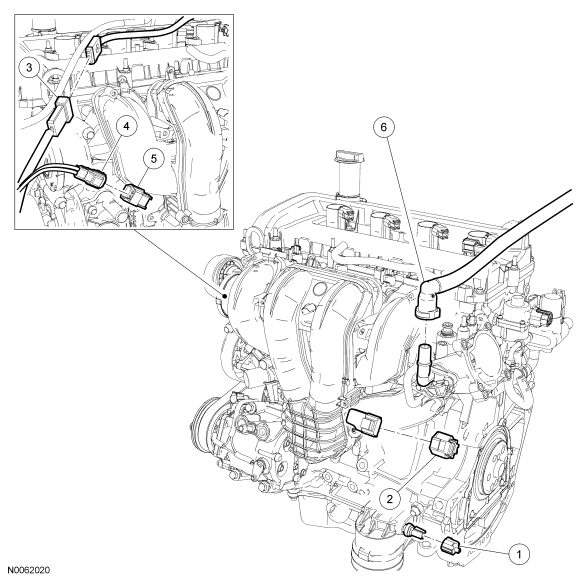

Fig 1: Intake Manifold Components (1 Of 2)
GF0042139Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Engine oil pressure (EOP) switch electrical connector (part of 12B637)
2 14A464 Manifold absolute pressure (MAP) sensor electrical connector (part of 12B637)
3 6B018 Block heater electrical harness connector (if equipped)
4 14A464 Knock sensor (KS) electrical connector (male side, part of 12B637)
5 14A464 KS electrical connector (female side, part of 12B637)
6 9D289 Fuel vapor return hose

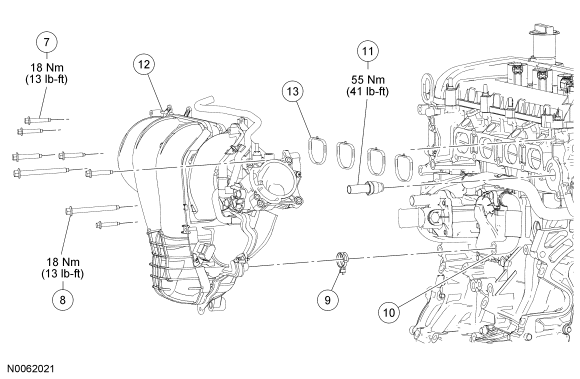

Fig 2: Intake Manifold Components With Torque Specifications (2 Of 2)
GF0042140Courtesy of FORD MOTOR CO.
Item Part Number Description
7 W500311 Intake manifold bolt (6 required)
8 W500319 Intake manifold bolt (2 required)
9 - Crankcase vent hose clamp (part of 6758)
10 6758 Crankcase vent hose
11 9E470 Exhaust gas recirculation (EGR) tube
12 9424 Intake manifold
13 9461 Intake manifold gasket
