Engine Front Cover: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Front Oil Seal | 303-096 (T74P-6150-A) | |
| Remover, Oil Seal | 303-409 (T92C-6700-CH) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

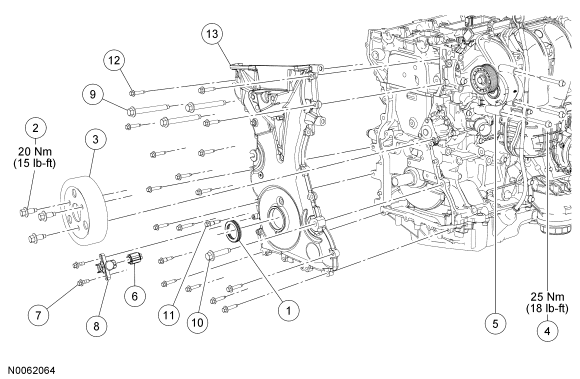

| Item | Part Number | Description |
|---|---|---|
| 1 | 6700 | Crankshaft front seal |
| 2 | W500221 | Coolant pump pulley bolt (3 required) |
| 3 | 8509 | Coolant pump pulley |
| 4 | W701625 | Accessory drive belt tensioner bolt (3 required) |
| 5 | 6B209 | Accessory drive belt tensioner |
| 6 | 14A464 | Crankshaft position (CKP) sensor electrical connector (part of 12B637) |
| 7 | W701219 | CKP sensor bolts (2 required) |
| 8 | 6C315 | CKP sensor |
| 9 | W500328 | Engine front cover bolt (3 required) |
| 10 | W500320 | Engine front cover bolt |
| 11 | W500300 | Engine from cover bolt |
| 12 | W500215 | Engine front cover bolt (17 required) |
| 13 | 6019 | Engine front cover |
