Valve Cover - RH: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A6 |

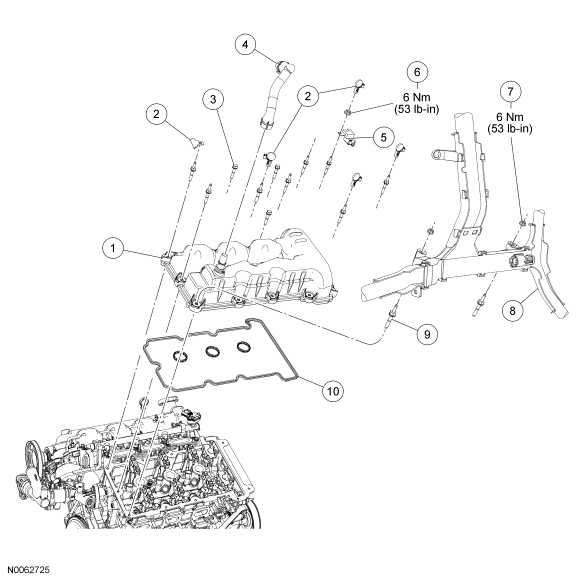

| Item | Part Number | Description |
|---|---|---|
| 1 | 6582 | Valve cover |
| 2 | W700497 | Wiring retainers (5 required) |
| 3 | 6C519 | Valve cover bolt (3 required) |
| 4 | 6K817 | Positive crankcase ventilation (PCV) tube |
| 5 | 18801 | Radio ignition interference capacitor electrical connector |
| 6 | W520411 | Radio ignition interference capacitor nut |
| 7 | W520411 | Engine control wiring harness shield nut (2 required) |
| 8 | 12B637 | Engine control wiring harness shield |
| 9 | 6C519 | Valve cover stud bolt (10 required) |
| 10 | 6584 | Valve cover gasket |
