Engine Oil Pressure (EOP) Switch: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Thread Sealant with PTFE
TA-24		 WSK-M2G350-A2

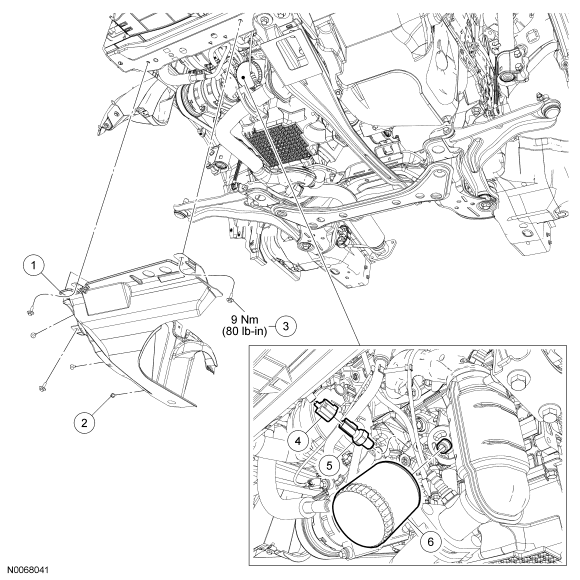

Fig 1: Engine Oil Pressure (EOP) Switch With Torque Specification
GF0042092Courtesy of FORD MOTOR CO.
Item Part Number Description
1 16102 RH lower splash shield
2 W706713 RH lower splash shield pin-type retainer
3 W707257 RH lower splash shield bolt (5 required)
4 14A464 Engine oil pressure (EOP) switch electrical connector (part of 9H589)
5 9278 EOP switch
6 6714 Engine oil filter
