Disassembly And Assembly Of Subassemblies: Piston: Material
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

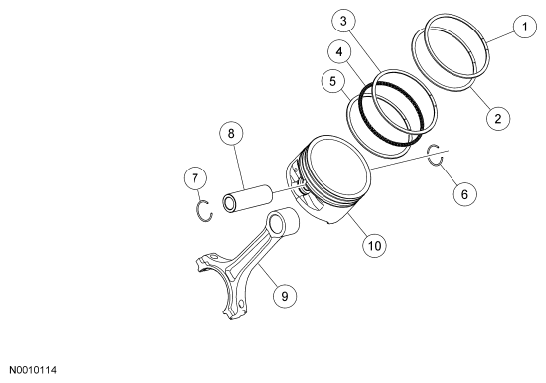

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6150 | Piston compression upper ring |
| 2 | 6152 | Piston compression lower ring |
| 3 | 6159 | Piston oil control upper segment ring |
| 4 | 6161 | Piston oil control spacer |
| 5 | 6159 | Piston oil control lower segment ring |
| 6 | 6140 | Piston pin retainer |
| 7 | 6140 | Piston pin retainer |
| 8 | 6135 | Piston pin |
| 9 | 6200 | Connecting rod |
| 10 | 6110 | Piston |
