Valve Cover: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

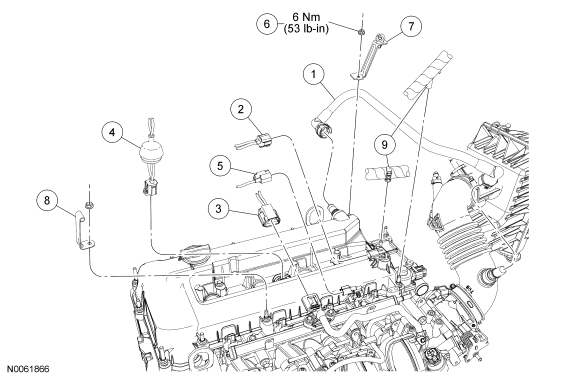

| Item |
Part Number |
Description |
| 1 |
6853 |
Crankcase vent hose |
| 2 |
14A464 |
Camshaft position (CMP) sensor electrical connector (part of 12B637) |
| 3 |
14A464 |
Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 4 |
14A464 |
Cylinder head temperature (CHT) sensor electrical connector (part of 12B637) |
| 5 |
14A464 |
Radio capacitor electrical connector (part of 12B637) |
| 6 |
W520412 |
Accelerator cable bracket nut (2 required) |
| 7 |
9E728 |
Accelerator cable bracket |
| 8 |
- |
Accelerator cable bracket (part of 9A758) |
| 9 |
14A163 |
Wire harness retainers (part of 12B637) |
Courtesy of FORD MOTOR CO.

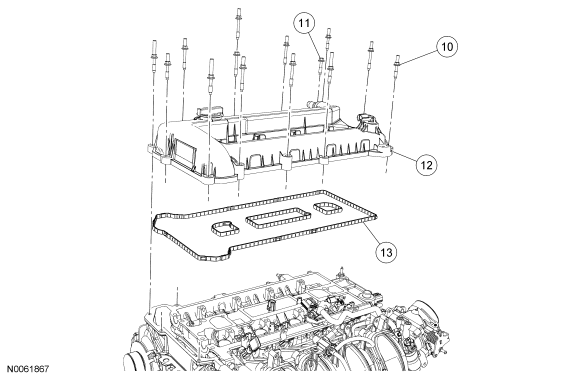

| Item |
Part Number |
Description |
| 10 |
6C293 |
Valve cover retainer (12 required) |
| 11 |
6C295 |
Valve cover retainer (2 required) |
| 12 |
6582 |
Valve cover |
| 13 |
6584 |
Valve cover gasket |
