Engine Mount: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration |
Tool Name |
Tool Number |
 Courtesy of FORD MOTOR CO.
|
Support Bar, Engine |
303-F072 |
Courtesy of FORD MOTOR CO.

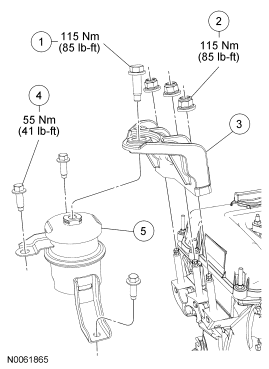

| Item |
Part Number |
Description |
| 1 |
W710824 |
Engine mount bracket bolt |
| 2 |
N807144 |
Engine mount bracket nut (3 required) |
| 3 |
6A094 |
Engine mount bracket |
| 4 |
W500233 |
Engine mount bolt (3 required) |
| 5 |
6068 |
Engine mount |
