Engine Lubrication Components - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

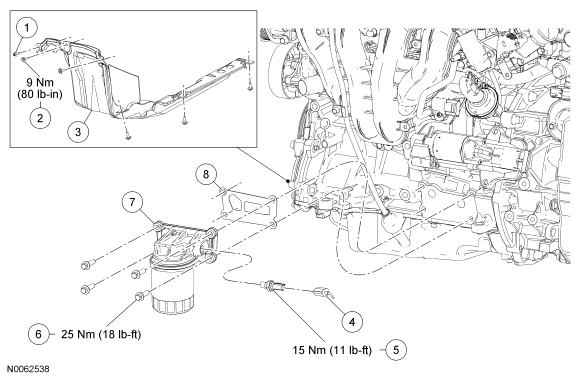

| Item | Part Number | Description |
|---|---|---|
| 1 | W706713 | RH splash shield pin-type retainer |
| 2 | W707257 | RH splash shield bolt (5 required) |
| 3 | 16A573 | RH splash shield |
| 4 | 14A464 | Engine oil pressure (EOP) switch electrical connector (part of 12B637) |
| 5 | 9278 | EOP switch |
| 6 | W500225 | Oil filter adapter bolt (4 required) |
| 7 | 6884 | Oil filter adapter |
| 8 | 6A636 | Oil filter adapter gasket |

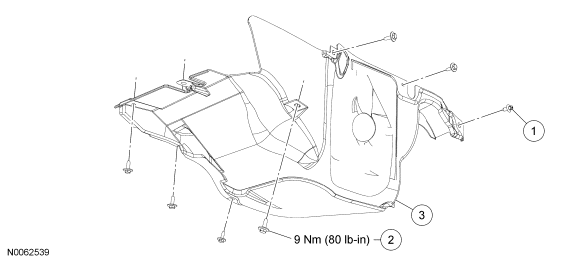

| Item | Part Number | Description |
|---|---|---|
| 1 | W706713 | LH splash shield pin-type retainer |
| 2 | W707257 | LH splash shield bolt (6 required) |
| 3 | 16A574 | LH splash shield |
NOTE:
Automatic transmission shown, manual transmission similar.

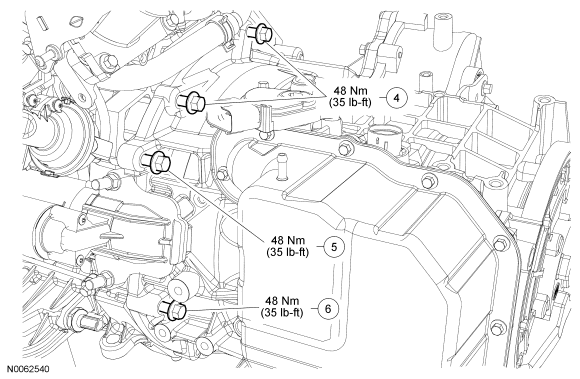

Fig 3: Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 4 | W500121 | Upper bellhousing-to-engine bolts |
| 5 | W500121 | Front lower bellhousing-to-engine bolt |
| 6 | W500125 | Front lower bellhousing-to-engine bolt |

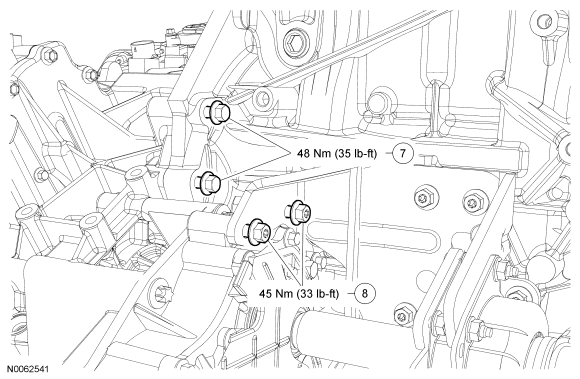

Fig 4: Oil Pan, Oil Pump Screen and Pickup Tube, All Wheel Drive (AWD) Vehicles With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 7 | W500125 | Rear lower engine-to-bellhousing bolts |
| 8 | W707386 | Upper engine bracket-to-power transfer unit (PTU) bolts |

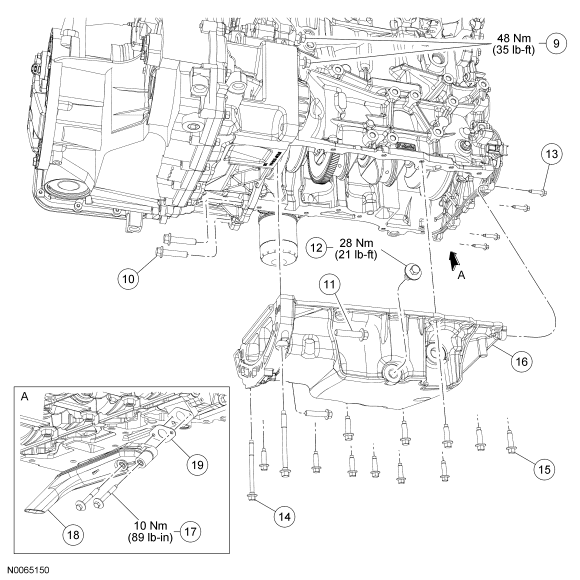

Fig 5: Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 9 | W500120 | Rear lower engine-to-bellhousing bolts |
| 10 | W500121 | Bellhousing-to-oil pan bolt (2 required) |
| 11 | W500121 | Oil pan-to-bellhousing bolt (2 required) |
| 12 | 6730 | Oil pan drain plug |
| 13 | W500215 | Engine front cover-to-oil pan bolt (4 required) |
| 14 | W706284 | Oil pan bolt (2 required) |
| 15 | W500224 | Oil pan bolt (11 required) |
| 16 | 6675 | Oil pan |
| 17 | W706282 | Oil pump screen and pickup tube bolt (2 required) |
| 18 | 6622 | Oil pump screen and pickup tube |
| 19 | 6625 | Oil pump screen and pickup tube gasket |
| Item | Part Number | Description |
|---|---|---|
| 1 | W703651 | Oil pump drive chain tensioner shoulder bolt (2 required) |
| 2 | 6C271 | Oil pump drive chain tensioner |
| 3 | 6A895 | Oil pump drive chain |
| 4 | W704397 | Oil pump sprocket bolt |
| 5 | 6652 | Oil pump sprocket |
| 6 | W703647 | Oil pump bolt (4 required) |
| 7 | 6600 | Oil pump |
- For additional information, refer to the procedures in this article.
