Engine Front Cover: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Installer, Front Oil Seal	303-096 (T74P-6150-A)
Courtesy of FORD MOTOR CO.	Remover, Oil Seal	303-409 (T92C-6700-CH)

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

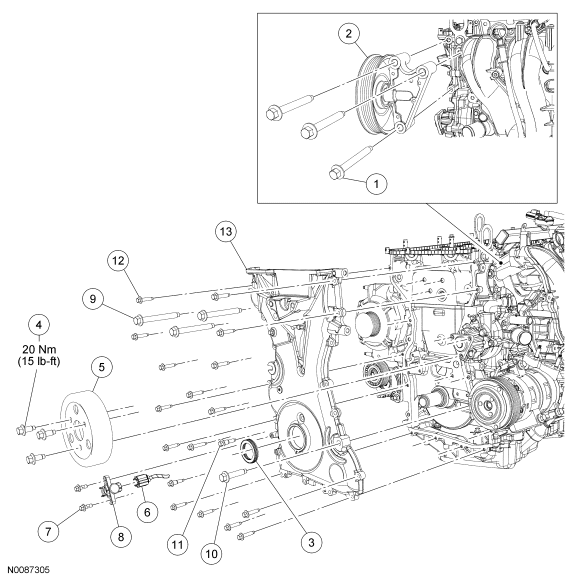

Fig 1: Engine Front Cover Components With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500315	Accessory drive belt idler pulley bolt (3 required)
2	3F671	Accessory drive belt idler pulley and bracket
3	6700	Crankshaft front seal
4	W500221	Coolant pump pulley bolt (3 required)
5	8509	Coolant pump pulley
6	14A464	Crankshaft position (CKP) sensor electrical connector (part of 12B637)
7	W701219	CKP sensor bolt (2 required)
8	6C315	CKP sensor
9	W500328	Engine front cover bolt (3 required)
10	W500320	Engine front cover bolt
11	W500300	Engine front cover bolt
12	W500215	Engine front cover bolt (17 required)
13	6019	Engine front cover
