Powertrain Control Module (PCM): Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

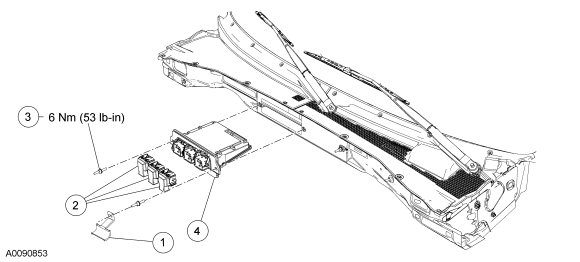

| Item |
Part Number |
Description |
| 1 |
- |
Wiring harness retainer (part of 12B637) |
| 2 |
14A464 |
Powertrain control module (PCM) electrical connectors (part of 12B637) |
| 3 |
N806925 |
PCM-to-dash stud bolt (2 required) |
| 4 |
12A650 |
PCM |
