Manifold Absolute Pressure (MAP) Sensor: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A

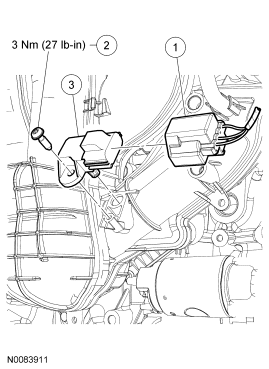

Fig 1: Exploded View Of Manifold Absolute Pressure (MAP) Sensor With Torque Specification
GF0042238Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Manifold Absolute Pressure (MAP) sensor electrical connector
2 W701459 MAP sensor screw
3 9F479 MAP sensor
