Crankshaft Position (CKP) Sensor: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Alignment Tool, Crank	303-1417
	Timing Peg, Crankshaft TDC	303-507

General Equipment

6 mm x 18 mm bolt

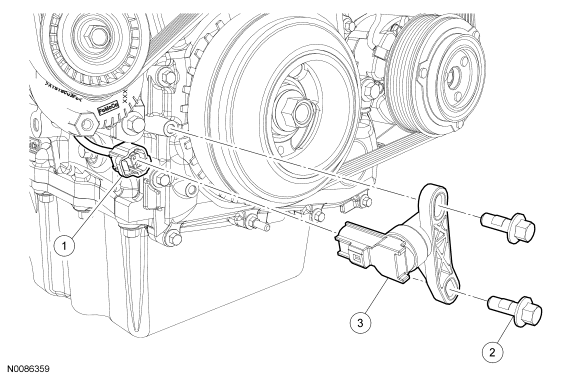

Fig 1: Exploded View Of Crankshaft Position (CKP) Sensor

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Crankshaft Position (CKP) sensor electrical connector (part of 12C508)
2	W701219	CKP sensor bolt (2 required)
3	6C315	CKP sensor
