Radiator - 2.3L: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

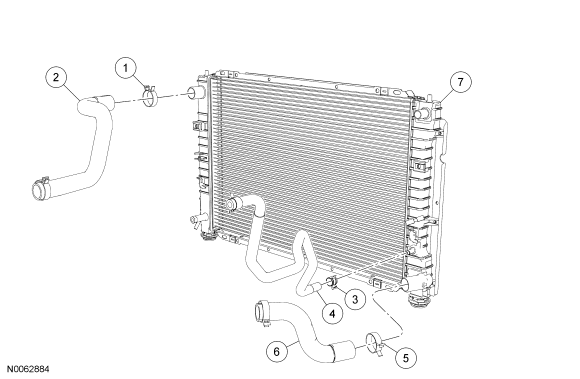

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W527372 |
Clamp |
| 2 |
8B274 |
Upper radiator hose |
| 3 |
W525853 |
Clamp |
| 4 |
8C633 |
Degas bottle-to-radiator hose |
| 5 |
W527372 |
Clamp |
| 6 |
8B273 |
Lower radiator hose |
| 7 |
8005 |
Radiator |

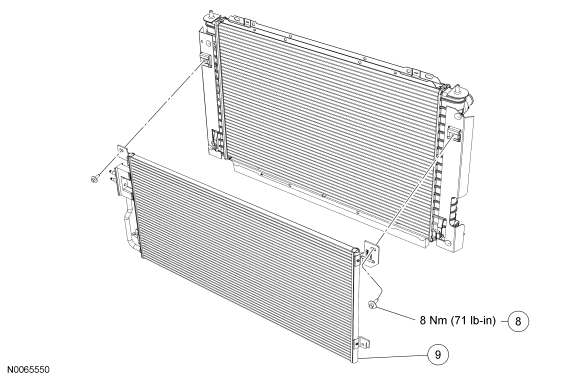

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 8 |
N606676 |
A/C condenser-to-radiator bolt (2 required) |
| 9 |
19710 |
A/C condenser |
