Frame Contact Hoist: Blackwood
WARNING: This page is about a different car, the 2003 Lincoln Blackwood, 2003 Ford Pickup, 2002 Lincoln Blackwood, and 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Assure the hoist to be used is of sufficient capacity to raise and support the vehicle. Refer to the hoist manufacturer literature. Damage to suspension, exhaust, fuel system and steering linkage components may occur if care is not exercised when positioning the hoist adapters prior to lifting the vehicle.

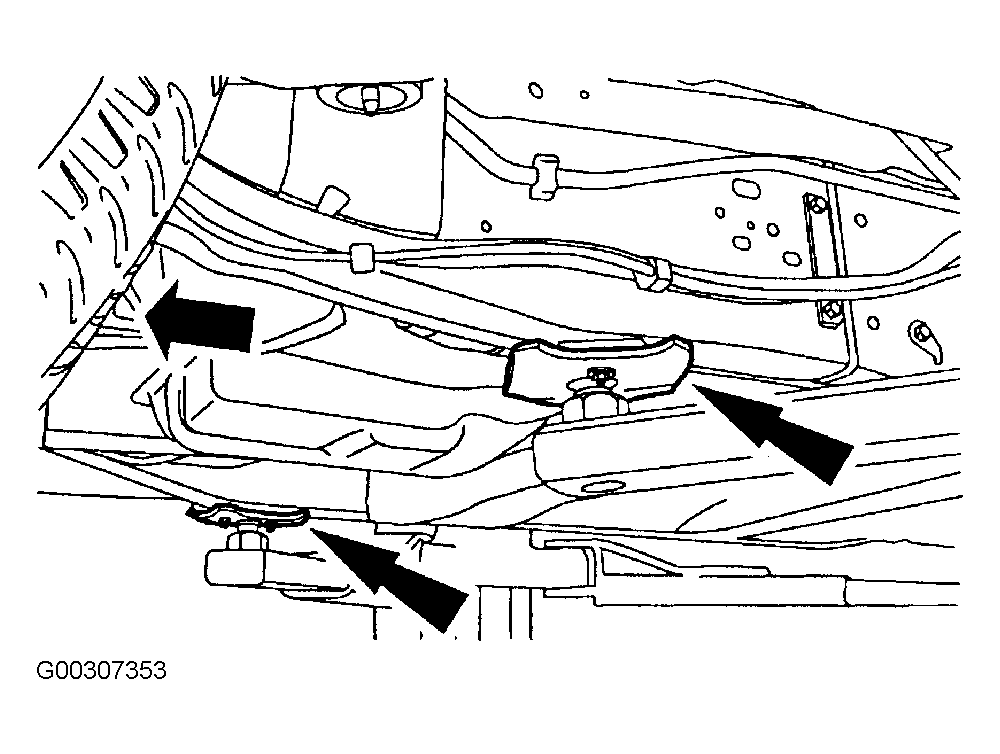

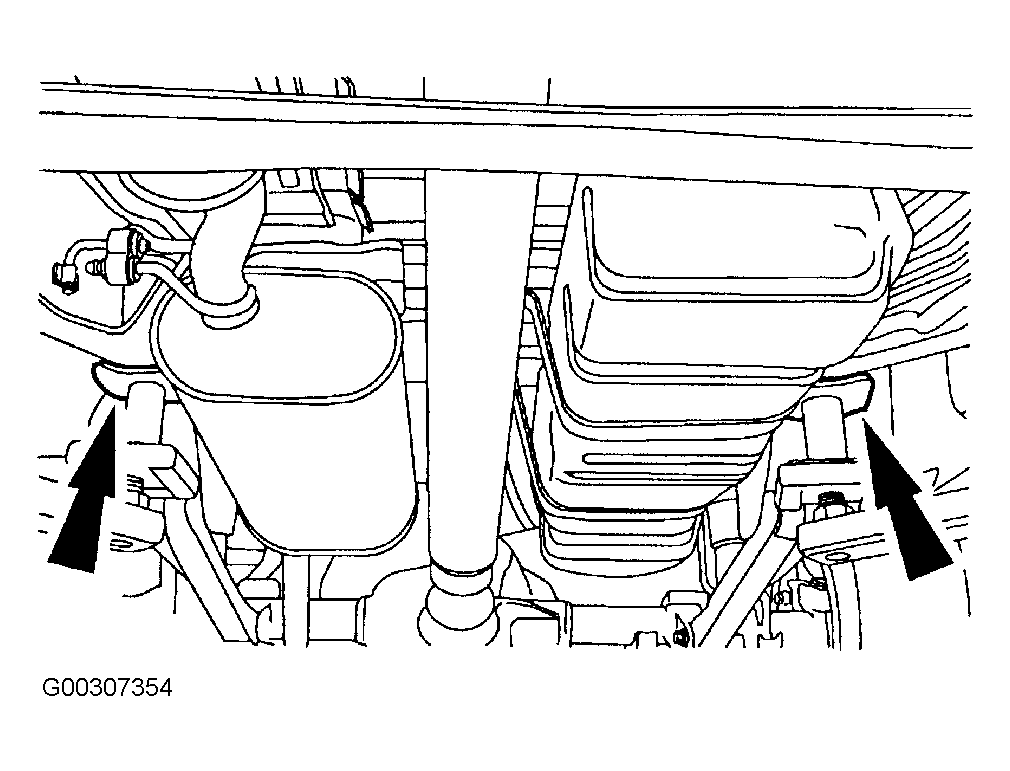

Disable the air suspension. See Figure . Assure the hoist will not interfere with any lines, hoses, clips or wiring harnesses. Position the hoist directly under the frame rails. See Fig 1 and Fig 2 .
