Instrument Cluster (IC): Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

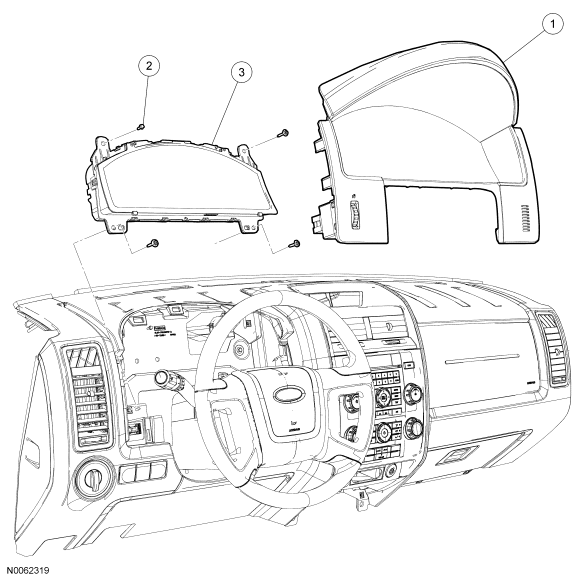

Fig 1: Instrument Cluster (IC)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	78044D70	Instrument cluster (IC) finish panel
2	W713306	Instrument cluster (IC) screws (4 required)
3	10849	Instrument cluster (IC)
