Instrument Cluster (IC): Notes

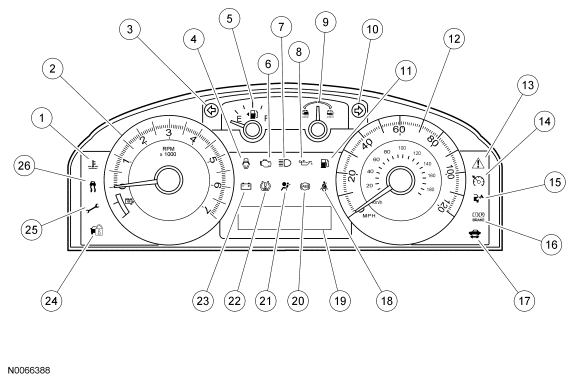

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Overtemp warning indicator (Hybrid only) |
| 2 | - | Tachometer |
| 3 | - | LH turn indicator |
| 4 | - | Door ajar warning indicator |
| 5 | - | Fuel Gauge |
| 6 | - | Malfunction indicator lamp (MIL) |
| 7 | - | High beam indicator |
| 8 | - | Low oil pressure warning indicator |
| 9 | - | Charge/assist gauge (Hybrid only) or temperature gauge (except Hybrid) |
| 10 | - | RH turn indicator |
| 11 | - | Low fuel warning indicator |
| 12 | - | Speedometer |
| 13 | - | Hazard warning indicator (Hybrid only) or O/D off indicator (except Hybrid) |
| 14 | - | Speed control indicator |
| 15 | - | Check fuel cap indicator |
| 16 | - | Brake warning indicator |
| 17 | - | Ready indicator (Hybrid only) |
| 18 | - | Safety belt warning indicator |
| 19 | - | Message center display |
| 20 | - | Anti-lock brake system (ABS) warning indicator |
| 21 | - | Air bag warning indicator |
| 22 | - | Tire pressure monitoring system (TPMS) warning indicator |
| 23 | - | Charging system warning indicator |
| 24 | - | Anti-theft indicator |
| 25 | - | Powertrain malfunction (wrench) warning indicator |
| 26 | - | Stability/traction control indicator |
The instrument cluster is available with either a integrated display (base cluster) or with a message center display (message center cluster). The integrated display and the message center display are 2-line, vacuum fluorescent type displays. Both the base cluster and the message center cluster contain gauges, informational indicators, and warning indicators that are designed to provide the driver with a system status and to alert the driver that certain conditions exist in the vehicle.
The instrument cluster uses both hardwired inputs and messaged inputs to control the gauge and indicator outputs. Other systems that use instrument cluster inputs are the passive anti-theft system (PATS) and stability/traction control. For additional information on PATS, refer to ANTI-THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS) - HYBRID article. For additional information on the stability/traction control system, refer to VEHICLE DYNAMIC SYSTEMS article.
