Battery and Battery Tray
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

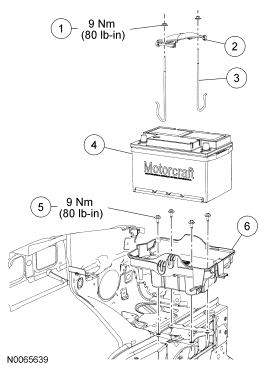

| Item | Part Number | Description |
|---|---|---|
| 1 | W701694-S441 | Battery hold-down nuts (2 required) |
| 2 | 10718 | Battery hold-down clamp |
| 3 | 10756 | Battery hold bracket J-bolt (2 required) |
| 4 | 10655 | Battery |
| 5 | W503923-S439 | Battery tray bolts (4 required) |
| 6 | 10732 | Battery tray |
- For additional information, refer to the procedures in this article.
