Battery Cables - 3.0L: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

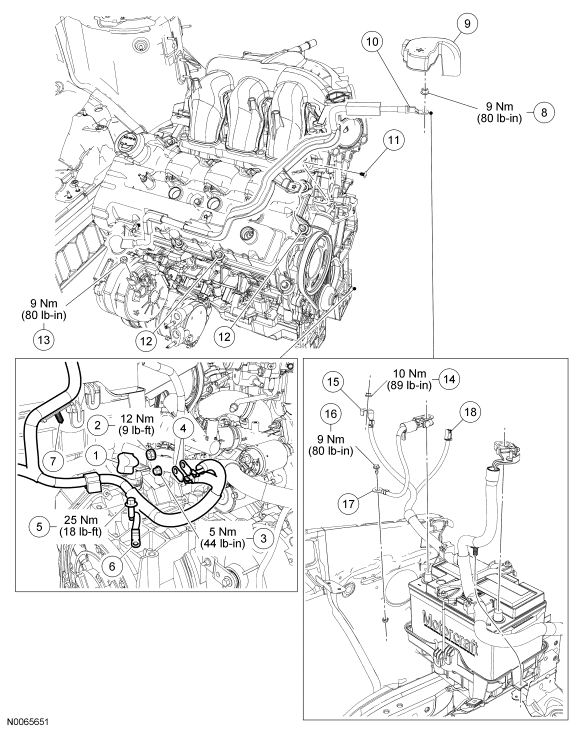

| Item | Part Number | Description |
|---|---|---|
| 1 | 14488 | Starter solenoid terminal cover |
| 2 | W706414 | Starter motor positive cable nut |
| 3 | W704141-S | Starter solenoid wire nut |
| 4 | - | Starter motor terminals (part of 14A280) |
| 5 | - | Battery ground cable-to-transaxle bolt |
| 6 | - | Battery ground cable terminal (part of 14A280) |
| 7 | 13A506 | Pin-type retainer |
| 8 | W520412 | Terminal bolt (to 14A280) |
| 9 | 14603A | Battery positive terminal protective cover |
| 10 | 14A280 | Battery cable harness |
| 11 | 13A506 | Pin-type retainer |
| 12 | - | Valve cover studs |
| 13 | W706414 | Generator B+ terminal nut |
| 14 | W520412 | Battery junction box (BJB) terminal nut |
| 15 | - | BJB terminal (part of 14A280) |
| 16 | W707193 | Body ground terminal bolt |
| 17 | - | Body ground terminal |
| 18 | - | BJB electrical connector (part of 14A280) |
