Clutch and Clutch Field Coil - 2.3L, 3.0L (4V): Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Protector, A/C Compressor Shaft | 412-137 | |
| Installer, A/C Clutch | 412-136 |

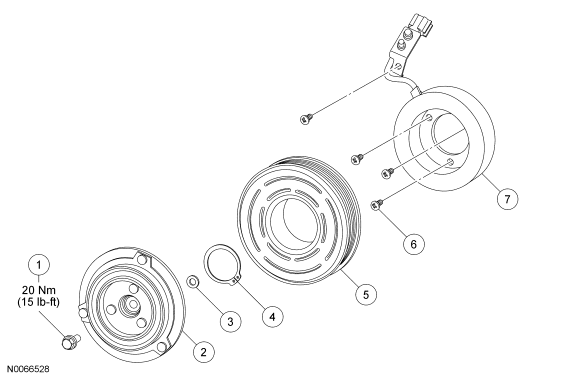

| Item | Part Number | Description |
|---|---|---|
| 1 | - | A/C clutch disc and hub bolt (part of 19D784) |
| 2 | - | A/C clutch disc and hub (part of 19D784) |
| 3 | - | A/C clutch hub disc and hub spacer (part of 19D784) |
| 4 | - | A/C compressor pulley snap ring (part of 19D784) |
| 5 | - | A/C compressor pulley (part of 19D784) |
| 6 | - | A/C clutch field coil screws (4 required) (part of 19D784) |
| 7 | - | A/C clutch field coil (part of 19D784) |
