Air Conditioning (A/C) Compressor - 3.0L (4V): Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

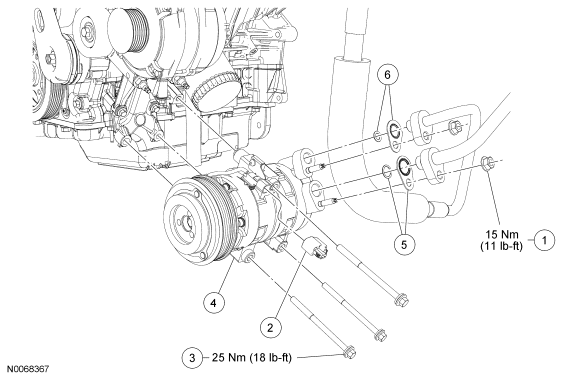

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor fitting nut (suction and discharge) (2 required) |
| 2 | - | A/C clutch field coil electrical connector (part of 19B573) |
| 3 | W713281 | A/C compressor bolt (3 required) |
| 4 | 19703 | A/C compressor |
| 5 | 19B596 | O-ring seal and gasket seal kit |
| 6 | 19B596 | O-ring seal and gasket seal kit |
