Seat Cushion - Front, Passenger Side: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |
NOTE:
Seat equipped with a production occupant classification sensor (OCS) system shown. For service OCS system components, refer to Supplemental Restraint System - Escape & Mariner
article.

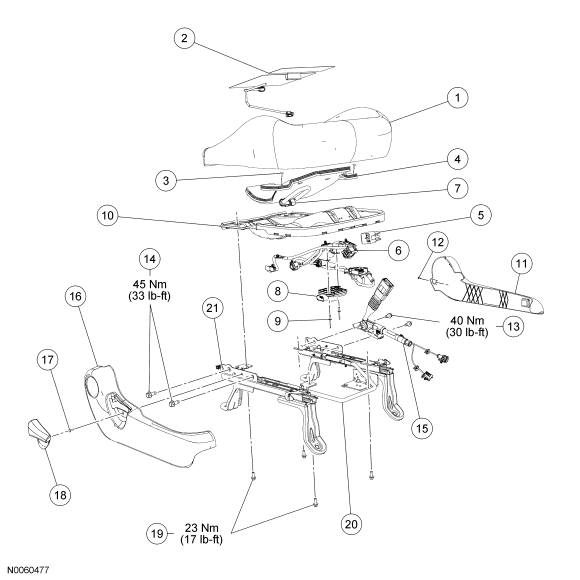

| Item | Part Number | Description |
|---|---|---|
| 1 | 62900/ 603B02 | Trim cover/ foam pad (part of 603B02) |
| 2 | - | Heater mat (if equipped) (part of 603B02) |
| 3 | - | Pin-type retainer (2 required) (part of 603B02) |
| 4 | - | Occupant classification sensor (OCS) bladder (part of 603B02) |
| 5 | 14N089 | Heated seat relay (if equipped) |
| 6 | 14A699 | Wiring harness |
| 7 | - | Pressure sensor, (OCS system) (part of 603B02) |
| 8 | - | Occupant classification system module (OCSM) (part of 603B02) |
| 9 | W703756 | OCSM rivet (2 required) (part of 603B02) |
| 10 | 63100 | Cushion frame |
| 11 | 62187 | Inboard side shield |
| 12 | 62294 | Screw, inboard side shield |
| 13 | - | Bolt, safety belt buckle pretensioner (part of 61202) |
| 14 | 611B40 | Bolts, backrest frame-to-seat track (3 required) |
| 15 | 61202 | Safety belt buckle pretensioner |
| 16 | 62186 | Outboard side shield |
| 17 | 62294 | Screw, outboard side shield |
| 18 | 61736 | Recliner handle |
| 19 | W500023 | Bolts, seat track-to-cushion frame (4 required) |
| 20 | 61753 | Seat track adjust handle |
| 21 | 61704 | Seat track |
