Safety Belt Retractor and Pretensioner: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

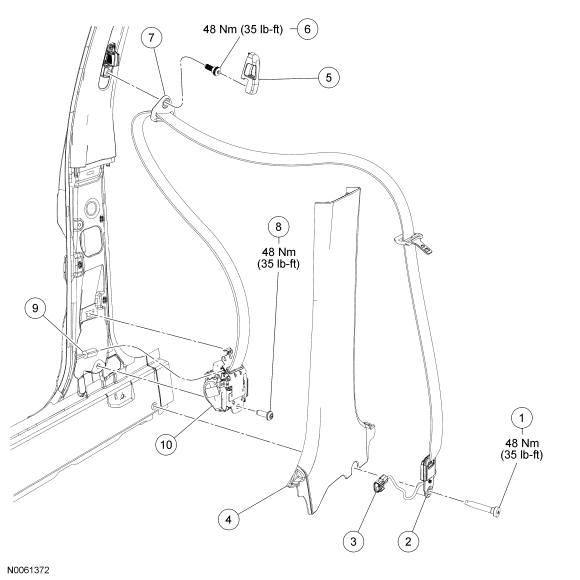

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt anchor bolt (part of 611B08) |
| 2 | - | Safety belt anchor (part of 611B08) |
| 3 | - | Electrical connector (part of 611B08) |
| 4 | 24356 | Lower B-pillar trim cover |
| 5 | 60262 | D-ring bolt cover |
| 6 | - | D-ring bolt (part of 611B08) |
| 7 | - | D-ring (part of 611B08) |
| 8 | W707722 | Safety belt retractor pretensioner bolt |
| 9 | - | Electrical connector (part of 611B08) |
| 10 | 611B08 | Safety belt retractor pretensioner |
