Interior Trim
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

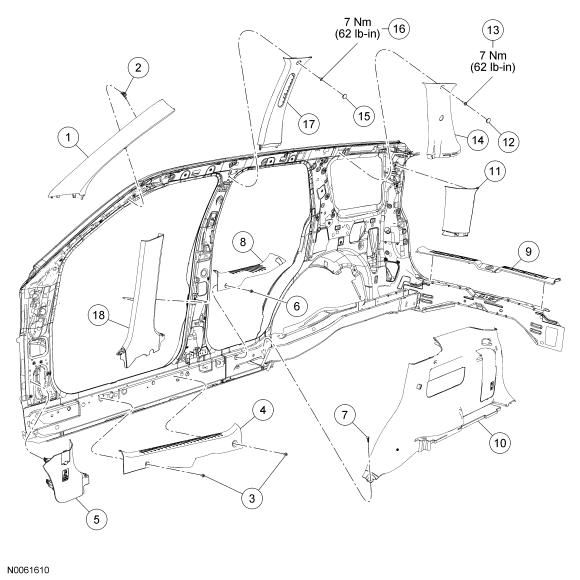

| Item | Part Number | Description |
|---|---|---|
| 1 | 03512 RH/ 03513 LH | A-pillar trim panel |
| 2 | - | A-pillar trim panel tether |
| 3 | W711445 | Pin-type retainers (2 required) |
| 4 | 13200 RH/ 13201 LH | Front door scuff plate trim panel |
| 5 | 02348 RH/ 02349 LH | Lower cowl trim panel |
| 6 | W711445 | Pin-type retainer |
| 7 | W710584 | Pin-type retainer |
| 8 | 13244 RH/ 13245 LH | Rear door scuff plate trim panel |
| 9 | 025B17 | Liftgate scuff plate trim panel |
| 10 | 31012 RH/ 31013 LH | Quarter trim panel |
| 11 | 31010 RH/ 31011 LH | D-pillar trim panel |
| 12 | 243A84 | C-pillar bolt cover |
| 13 | W719219 | Upper C-pillar trim panel bolt |
| 14 | 31332 RH/ 31333 LH | C-pillar trim panel |
| 15 | 243A84 | Upper B-pillar bolt cover |
| 16 | W719219 | Upper B-pillar trim panel bolt |
| 17 | 24396 RH/ 24397 LH | Upper B-pillar trim panel |
| 18 | 243A52 RH/ 243A53 LH | Lower B-pillar trim panel |
- For additional information, refer to the procedures in this article.
