Front End Body Panels
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

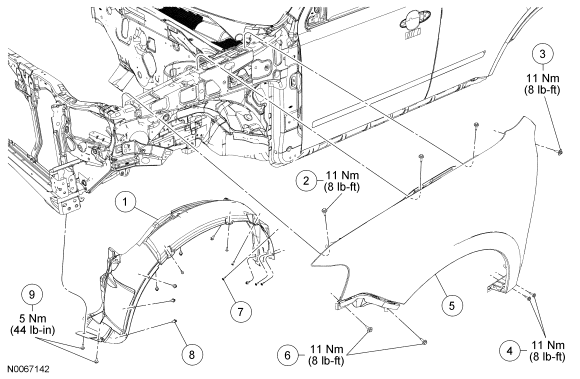

| Item | Part Number | Description |
|---|---|---|
| 1 | 16102A RH/ 16103A LH | Fender splash shield |
| 2 | W713056 | Upper fender bolt (3 required) |
| 3 | W713056 | Upper rear fender bolt |
| 4 | W713056 | Lower rear fender bolts (2 required) |
| 5 | 16005 RH/ 16006 LH | Fender |
| 6 | W713056 | Radiator support brace fender bolts (2 required) |
| 7 | W702434 | Fender splash shield screw (6 required) |
| 8 | - | Pin-type retainer (7 required) |
| 9 | W706806 | Fender splash shield bolts (2 required) |
- For additional information, refer to the procedures in this article.
