Removal & Installation
WARNING: This page is about a different car, the 2004 Ford Escape, 2003 Ford Escape, and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

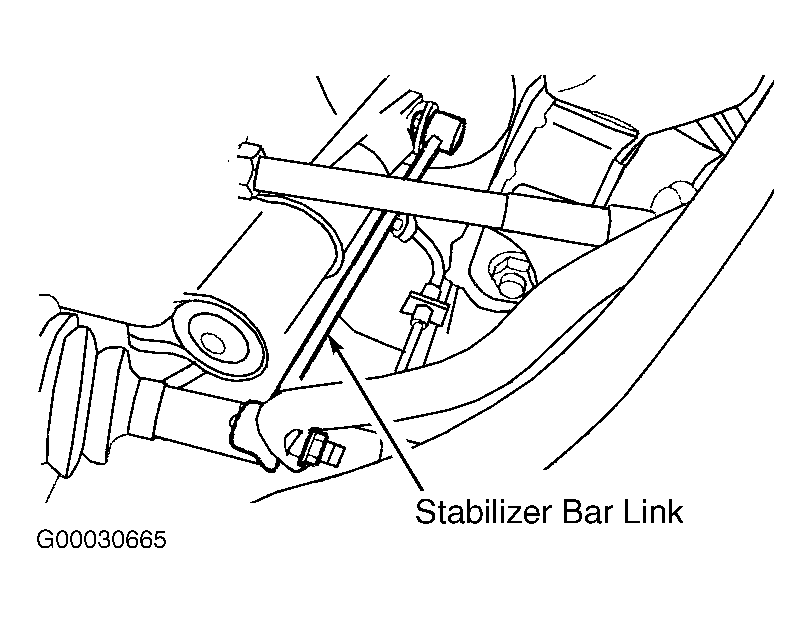

Raise and support vehicle. Remove left front wheel. Remove four bolts and two bushings. Remove two stabilizer bar links upper and lower nuts. See Fig 1 . Remove stabilizer bar and links. To install, reverse removal procedure. See TORQUE SPECIFICATIONS .
