Disassembly & Reassembly

WARNING: This page is about a different car, the 2004 Ford Escape, 2003 Ford Escape, and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using Bearing Pulling Attachment (D79L-4621-A) to support steering knuckle, press wheel hub from wheel knuckle. See Fig 1 . If inner wheel remains on wheel hub, use Bearing Pulling Attachment to remove inner bearing race from wheel hub. Remove retainer ring from wheel knuckle. See Fig 2 . Using Bearing Pulling Attachment, press front wheel bearing from wheel knuckle.
  2. To reassemble, reverse disassembly procedure.

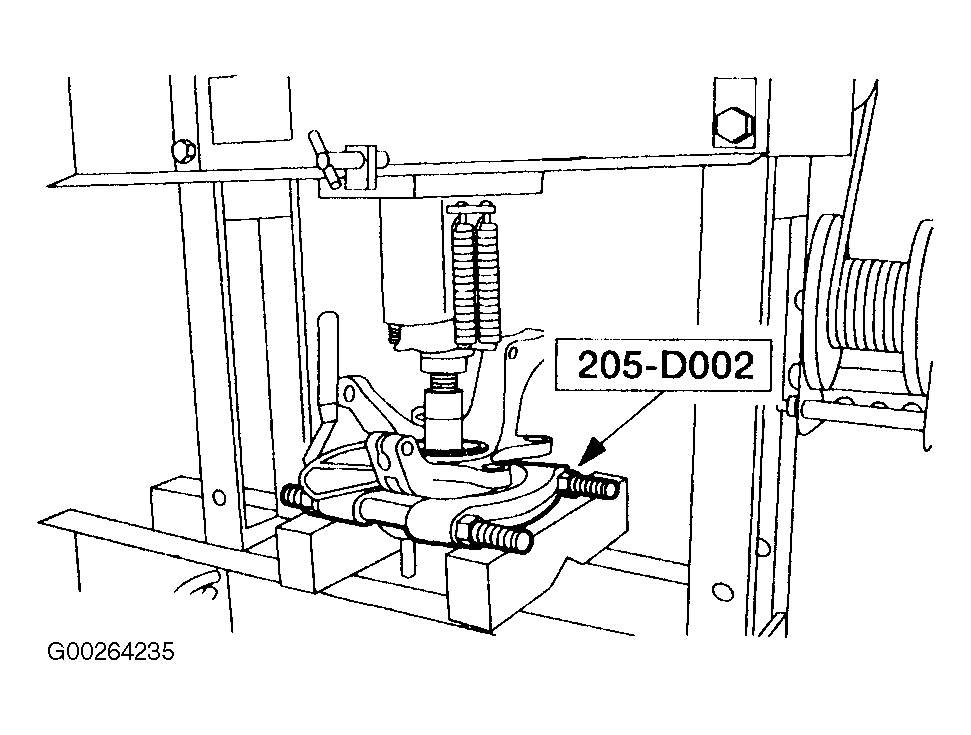

Fig 1: Pressing Wheel Hub From Wheel Bearing & Knuckle
G00264235Courtesy of FORD MOTOR CO.

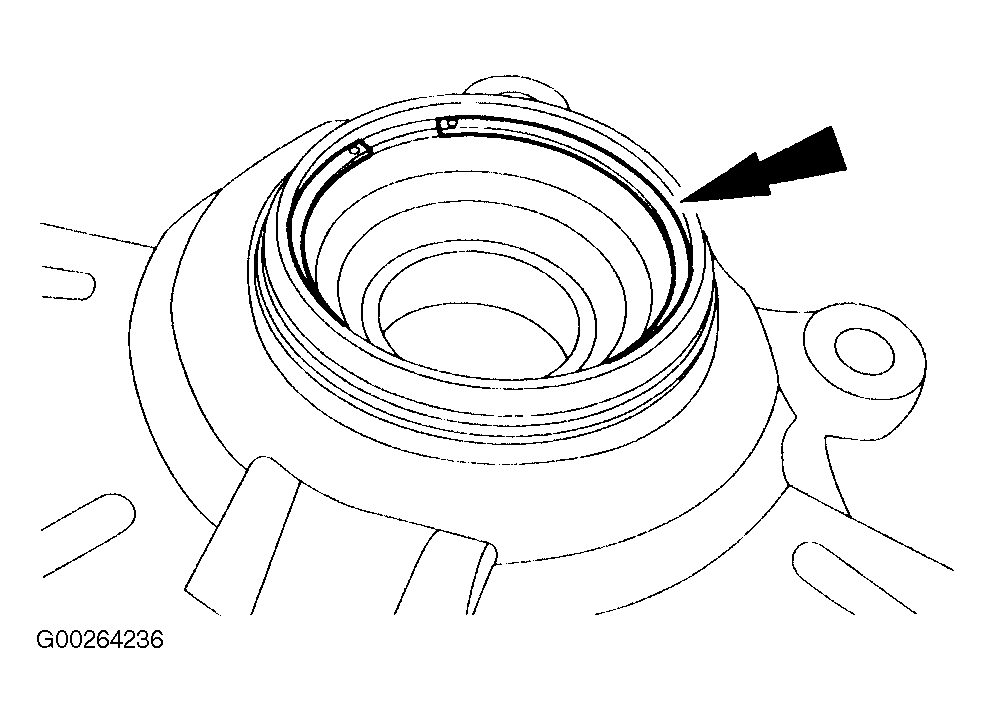

Fig 2: Removing Wheel Bearing Snap Ring
G00264236Courtesy of FORD MOTOR CO.
