Roof Opening Panel
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

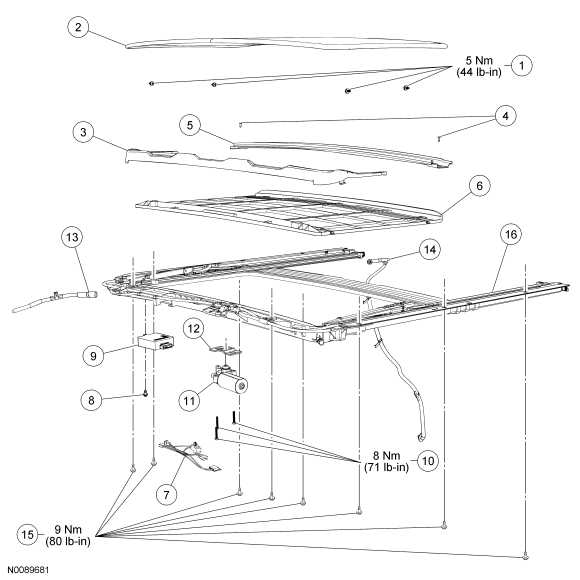

| Item | Part Number | Description |
|---|---|---|
| 1 | 78502B88 | Roof opening panel glass screws (4 required) |
| 2 | 7850054 | Roof opening panel glass |
| 3 | 78500A26 | Roof opening panel air deflector |
| 4 | - | Roof opening panel drain channel screws (2 required) |
| 5 | 7854022 | Roof opening panel drain channel |
| 6 | 78519A02 | Roof opening panel shield |
| 7 | 15B672 | Roof opening panel switch harness |
| 8 | - | Roof opening panel module pin-type retainer |
| 9 | 14677 | Roof opening panel module |
| 10 | 15C668 | Roof opening panel motor bolts (3 required) |
| 11 | 15790 | Roof opening panel motor |
| 12 | - | Motor clip (part of roof opening panel motor) |
| 13 | 78502C52A/ 78502C53A | Front drain hose |
| 14 | 78502C52B/ 78502C53 | Rear drain hose |
| 15 | - | Roof opening panel frame bolts (8 required) |
| 16 | 78502C22 | Roof opening panel frame |
- For additional information, refer to the individual procedures in this article.
