Catalytic Converter - 3.0L LH Manifold: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Socket, Exhaust Gas Oxygen Sensor | 303-476 (T94P-9472-A) |
Material
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada) |
ESE-M12A4-A |

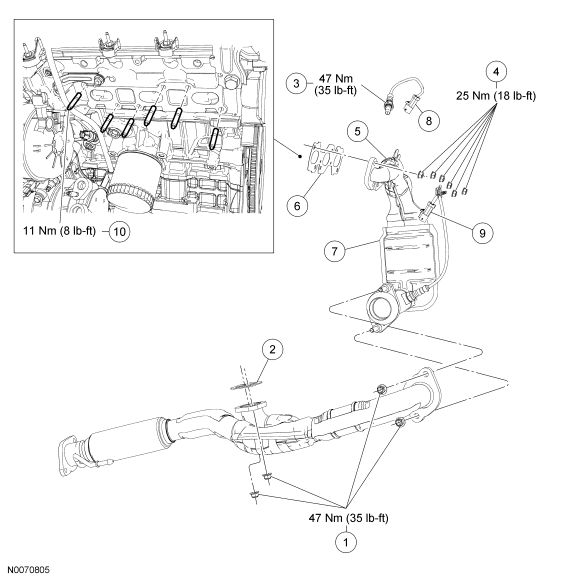

| Item | Part Number | Description |
|---|---|---|
| 1 | W705443 | Exhaust Y-pipe nuts (4 required) |
| 2 | 9451 | Exhaust Y-pipe gasket |
| 3 | - | Heated oxygen sensor (LH) (HO2S) |
| 4 | W701706 | Catalytic converter manifold nuts (LH) (6 required) |
| 5 | 5G232 | Catalytic converter (LH) |
| 6 | 9448 | Catalytic converter manifold gasket (LH) |
| 7 | 5K282 | Catalytic converter heat shield |
| 8 | 14A464 | HO2S (LH) electrical connector |
| 9 | 14A464 | Catalyst monitor sensor (LH) electrical connector |
| 10 | W701732 | LH catalytic converter manifold studs (6 required) |
