Removal & Installation (Rear Parking Brake Cable)

WARNING: This page is about a different car, the 2004 Ford Ranger, 2003 Ford Ranger, and 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the parking brake control is fully released. Relieve the tension on the parking brake system. Pull down on the parking brake intermediate cable. Insert a 5/32" (4 mm) drill bit or equivalent retainer in the parking brake control. See Figure.
  2. Raise and support vehicle. Remove the tire and wheel assembly.
  3. Remove the drum brake shoes. See BRAKE SHOES .
    4. NOTE: Disconnect the parking brake intermediate cable from the locating hole end of the connector. See Fig 4.
  4. Disconnect the parking brake intermediate cable from the left parking brake rear cable and conduit.
  5. Separate the right parking brake rear cable and conduit from the left parking brake rear cable and conduit at the parking brake cable equalizer. See Fig 5.
  6. Remove the right parking brake rear cable and wireform bracket. See Fig 6.
  7. Remove the left parking brake rear cable and conduit from the parking brake cable bracket. See Fig 7.
    • Compress the parking brake cable clip.
    • Open the retaining clip.
    • Remove the left parking brake rear cable and conduit from the parking brake cable bracket.
  8. Remove the right parking brake rear cable and conduit from the right hydraulic brake line clips. See Fig 8.
  9. Unclip the parking brake rear cable and conduit from the brake line clip on top of the rear axle housing. See Fig 9.
  10. Disconnect the parking brake cable from the parking brake lever. See Fig 10.
  11. Compress the retainer fingers. Remove the parking brake rear cable and conduit. See Fig 11.
  12. To install, reverse removal procedure.
Fig 1: Identifying Parking Brake Anchor Pin
G00307854Courtesy of FORD MOTOR CO.
Fig 2: Identifying Take Up Spool Tab
G00307855Courtesy of FORD MOTOR CO.
Fig 3: Identifying Front Parking Brake Cable & Conduit
G00307856Courtesy of FORD MOTOR CO.

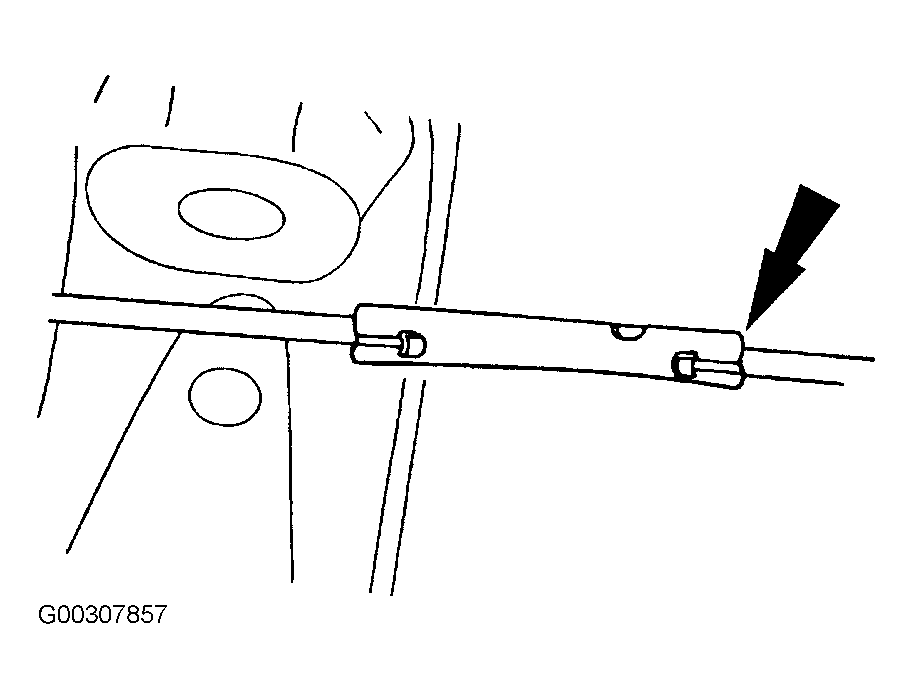

Fig 4: Identifying Locating Hole In Intermediate Cable Connector
G00307857Courtesy of FORD MOTOR CO.

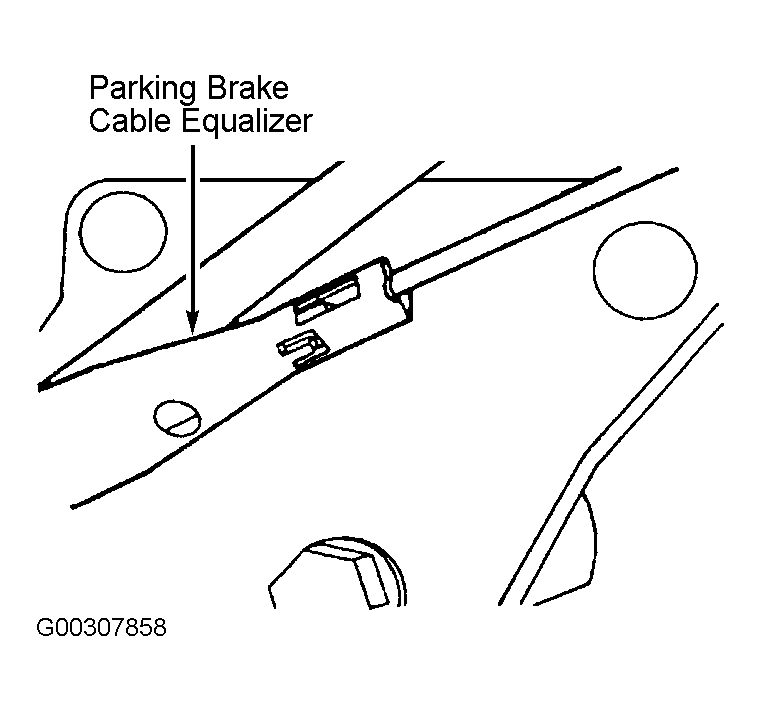

Fig 5: Identifying Parking Brake Cable Equalizer
G00307858Courtesy of FORD MOTOR CO.

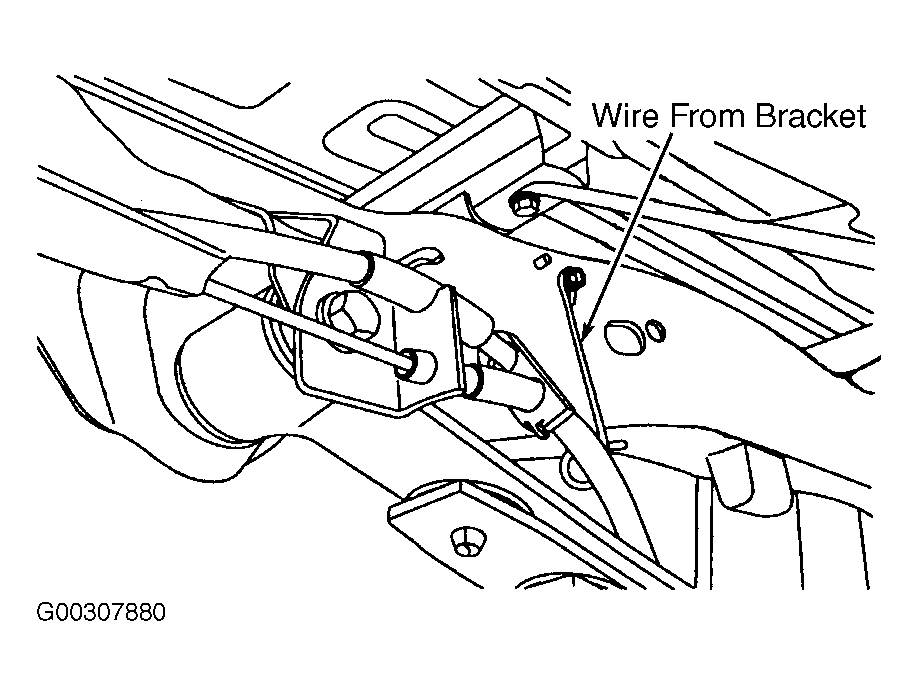

Fig 6: Identifying Rear Parking Brake Cable & Wireform Bracket
G00307880Courtesy of FORD MOTOR CO.

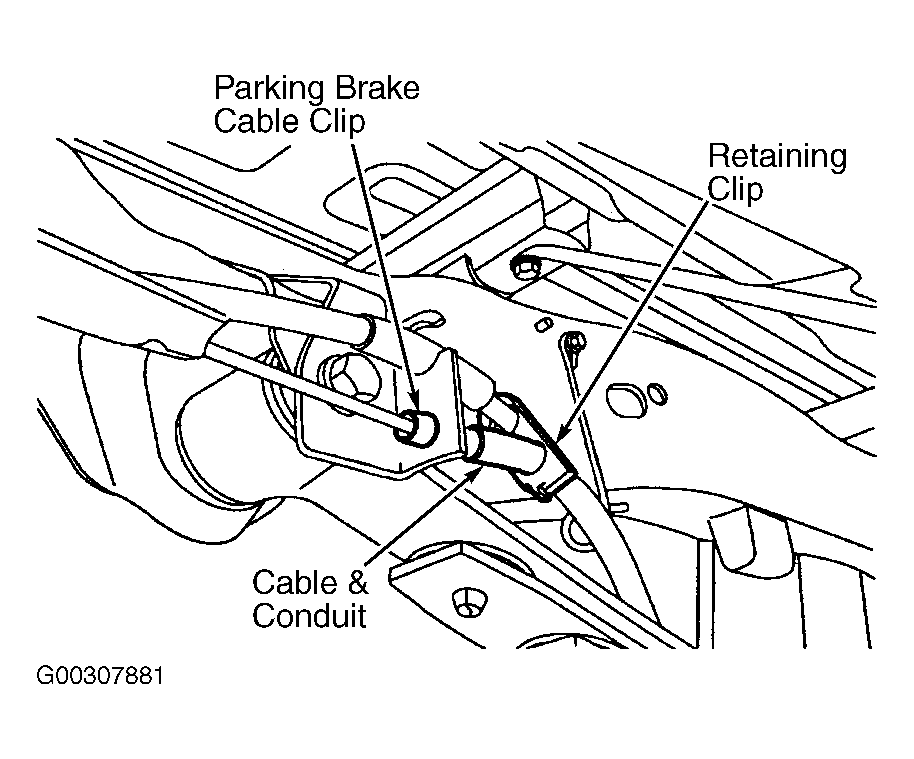

Fig 7: Identifying Parking Brake Cable Retaining Clips
G00307881Courtesy of FORD MOTOR CO.

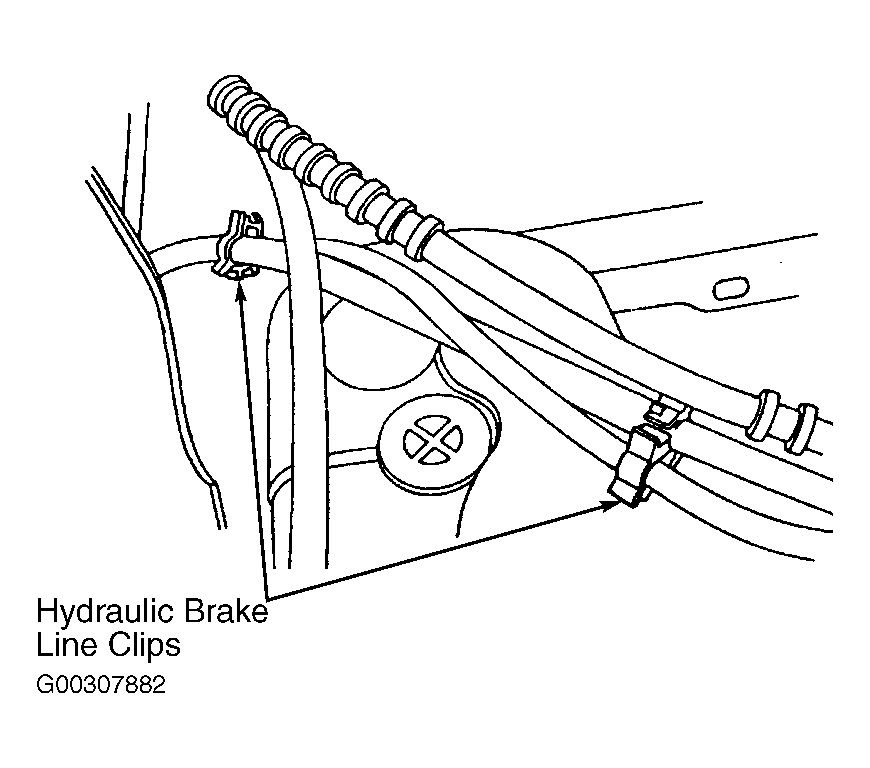

Fig 8: Identifying Hydraulic Brake Line Clips
G00307882Courtesy of FORD MOTOR CO.

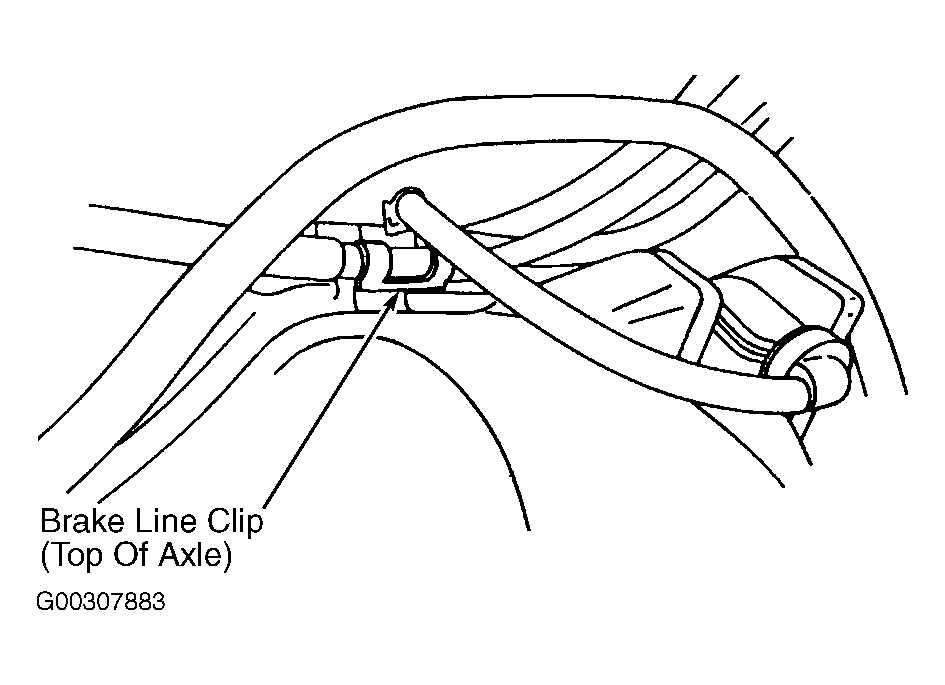

Fig 9: Locating Brake Line Clip On Top Of Axle
G00307883Courtesy of FORD MOTOR CO.

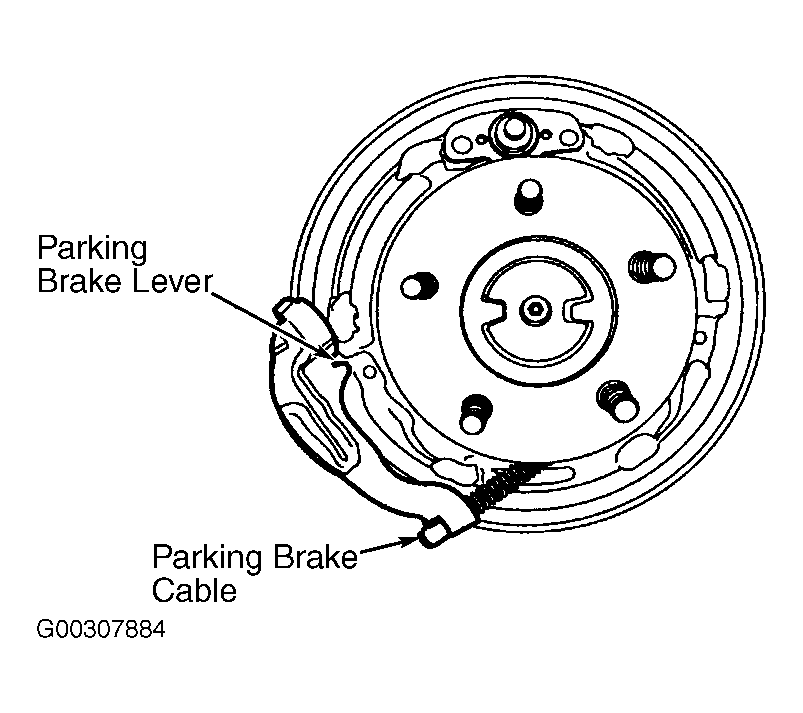

Fig 10: Identifying Parking Brake Lever
G00307884Courtesy of FORD MOTOR CO.

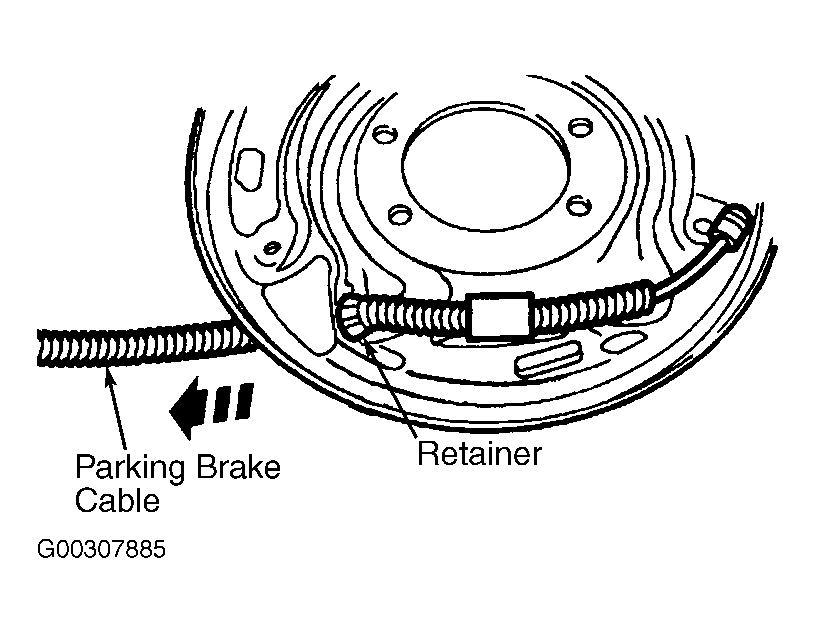

Fig 11: Removing Parking Brake Cable From Backing Plate
