Removal & Installation (A/T)

WARNING: This page is about a different car, the 2004 Ford Ranger, 2003 Ford Ranger, and 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake booster push rod. See Fig 1.
    • Remove the hairpin clip.
    • Separate the stoplight switch and the brake booster push rod from the brake pedal pin.
    • Remove the brake booster push rod bushing.
  2. Remove the bulkhead sound insulator. See Fig 2.
  3. Remove the upper brake pedal bracket bolts. See Fig 3.
  4. Remove the nuts and the brake pedal assembly. See Fig 4. Support the brake master cylinder and power brake booster in the engine compartment.
  5. To install, reverse the removal procedure.
Fig 1: Disconnecting Brake Booster Pushrod
G00307867Courtesy of FORD MOTOR CO.
Fig 2: Identifying Bulkhead Sound Insulator
G00307870Courtesy of FORD MOTOR CO.

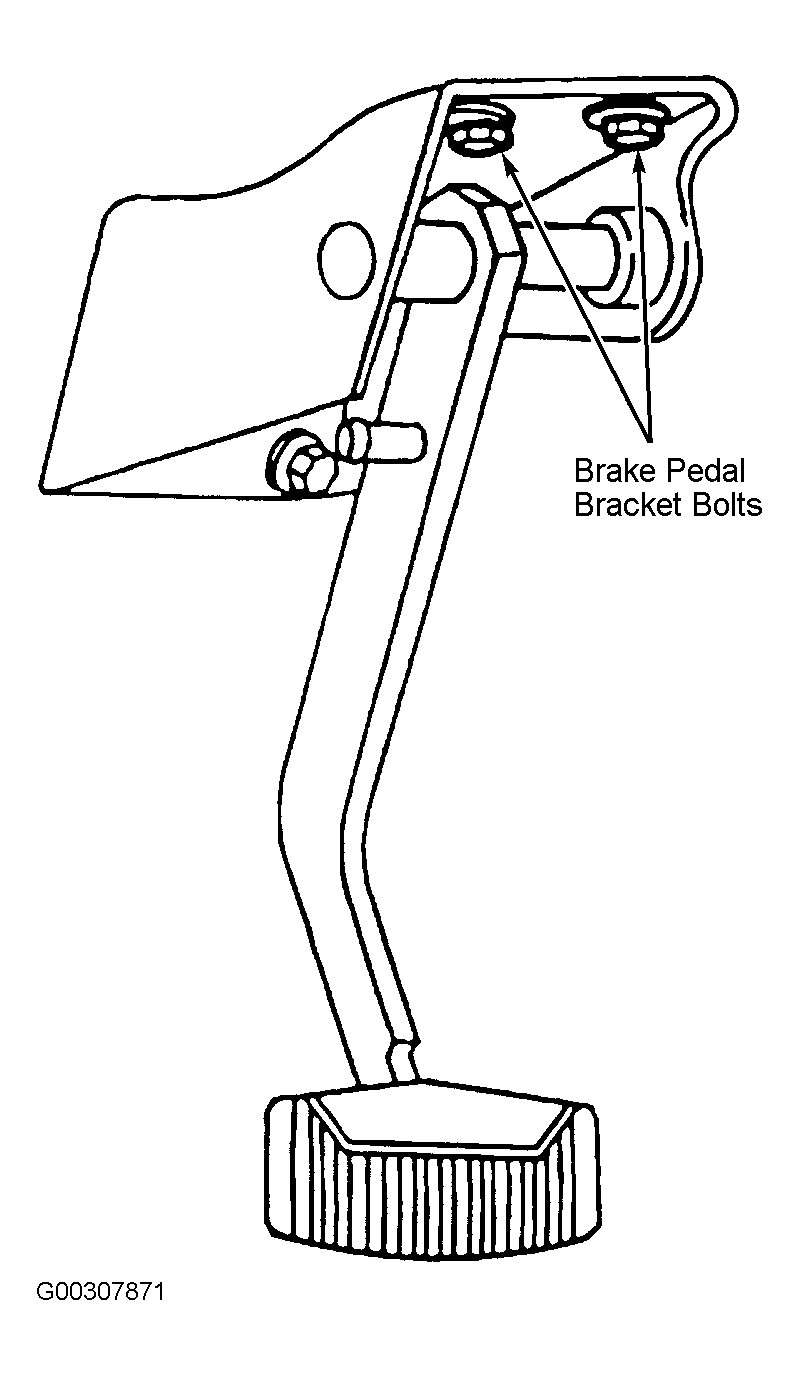

Fig 3: Identifying Upper Brake Pedal Bracket Nuts
G00307871Courtesy of FORD MOTOR CO.

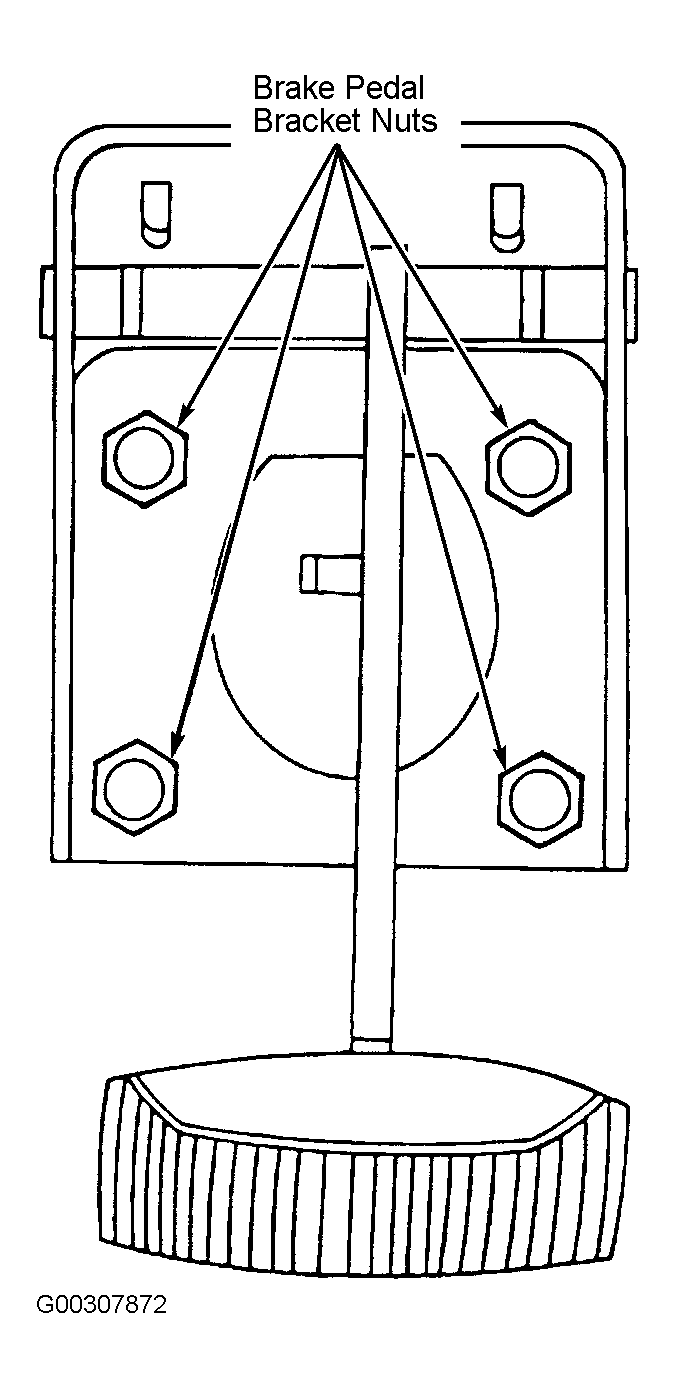

Fig 4: Identifying Brake Pedal Bracket Nuts
G00307872Courtesy of FORD MOTOR CO.
