Master Cylinder: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger, 2003 Ford Ranger, and 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove master cylinder. See MASTER CYLINDER  under REMOVAL & INSTALLATION.
  2. Clean outside of master cylinder.
  3. Remove the brake master cylinder filler cap and drain the remaining brake fluid.
  4. Mount the brake master cylinder in a soft-jawed vise.
  5. On cruise control equipped vehicles, remove the deactivator switch (brake pressure switch). See Fig 1.

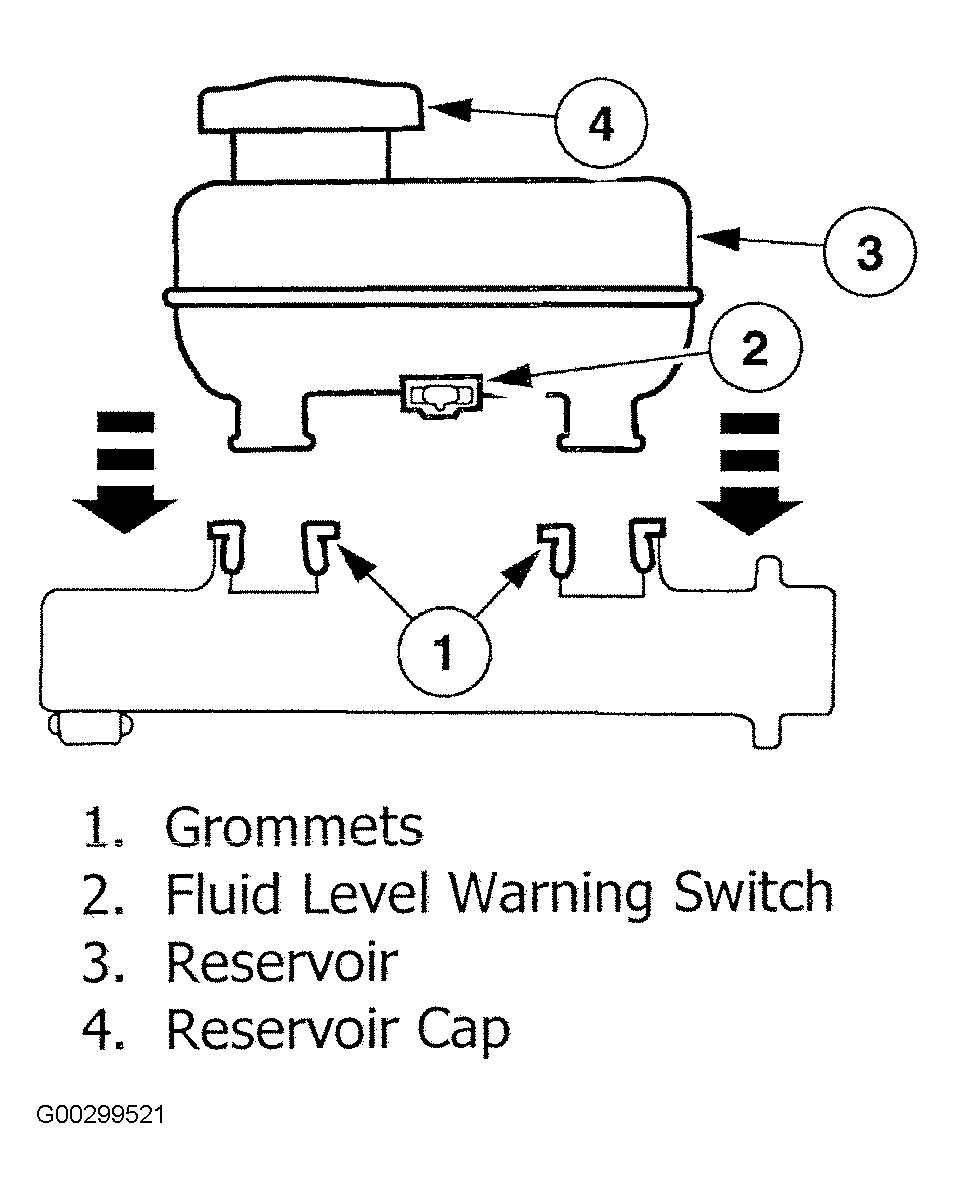

  6. Remove the brake master cylinder reservoir. See Figure.
  7. Depress the primary piston and remove the snap ring. See Fig 2.
  8. Remove the primary and secondary piston. See Fig 3 and Fig 4 .
  9. Use isopropyl alcohol to clean and inspect the brake master cylinder bore for damage. If the brake master cylinder bore is damaged, install a new brake master cylinder.
Fig 1: Identifying Brake Pressure Switch
G00299465Courtesy of FORD MOTOR CO.
Fig 2: Identifying Primary Piston Assembly & Snap Ring
G00299467Courtesy of FORD MOTOR CO.
Fig 3: Removing/Installing Primary Piston Assembly
G00299470Courtesy of FORD MOTOR CO.
Fig 4: Removing/Installing Secondary Piston Assembly
G00299469Courtesy of FORD MOTOR CO.
