Parking Brake
WARNING: This page is about a different car, the 2004 Ford Ranger, 2003 Ford Ranger, and 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

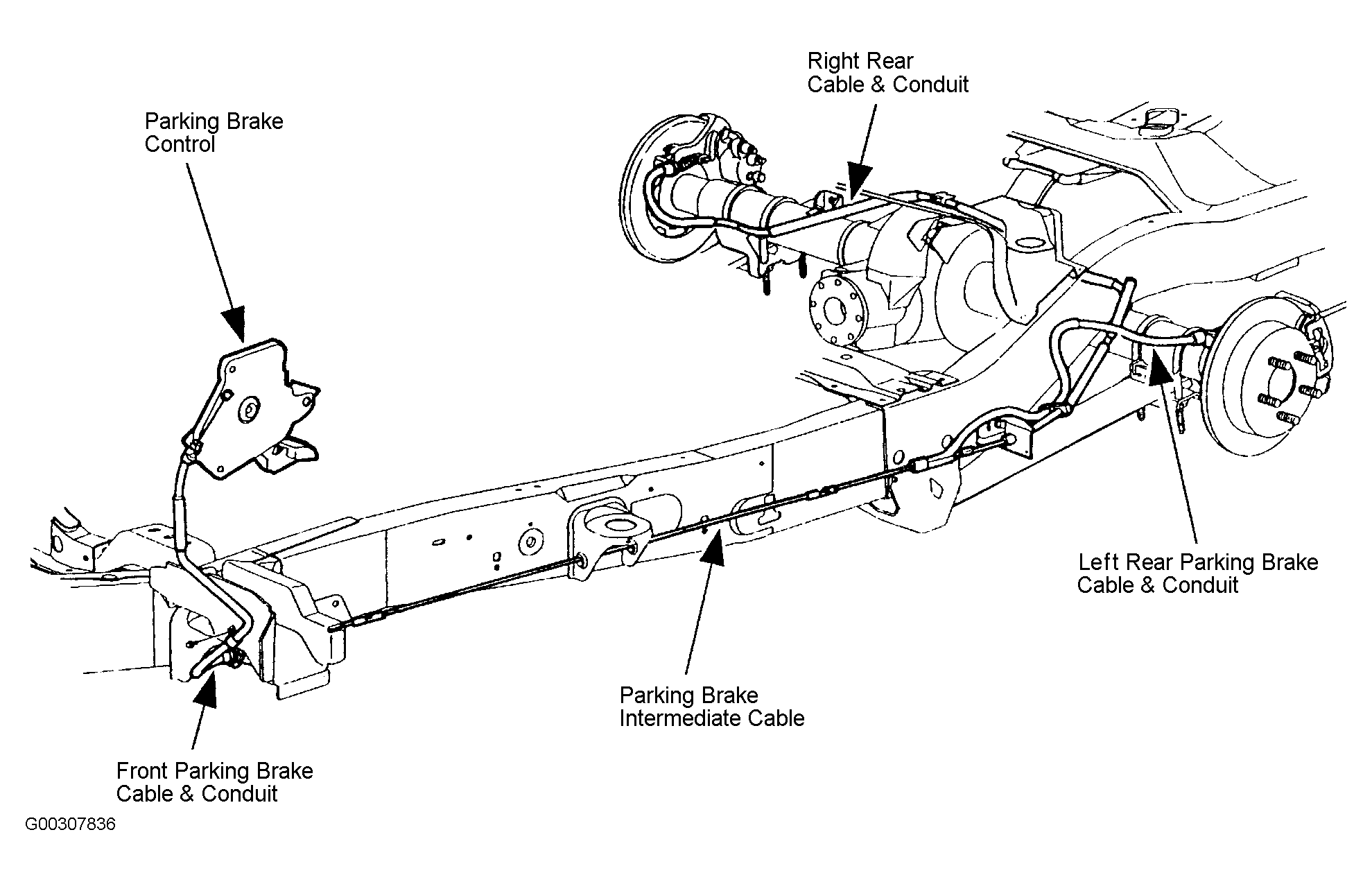

The parking brake system is actuated when the parking brake control is depressed. The parking brake control applies tension to the front parking brake cable and conduit, the parking brake intermediate cable, and the parking brake cable equalizer. The parking brake cable equalizer is coupled to the right parking brake rear cable and conduit, and the left parking brake rear cable and conduit. The respective rear brake assemblies are then applied. See Fig 1.
If the parking brake control is not fully released, the parking brake signal switch will illuminate the brake warning light. The parking brake signal switch is mounted on the parking brake control. The switch is held in place by a self-tapping screw and aligned with a locator pin.
