Drum Brake
WARNING: This page is about a different car, the 2004 Ford Ranger, 2003 Ford Ranger, and 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

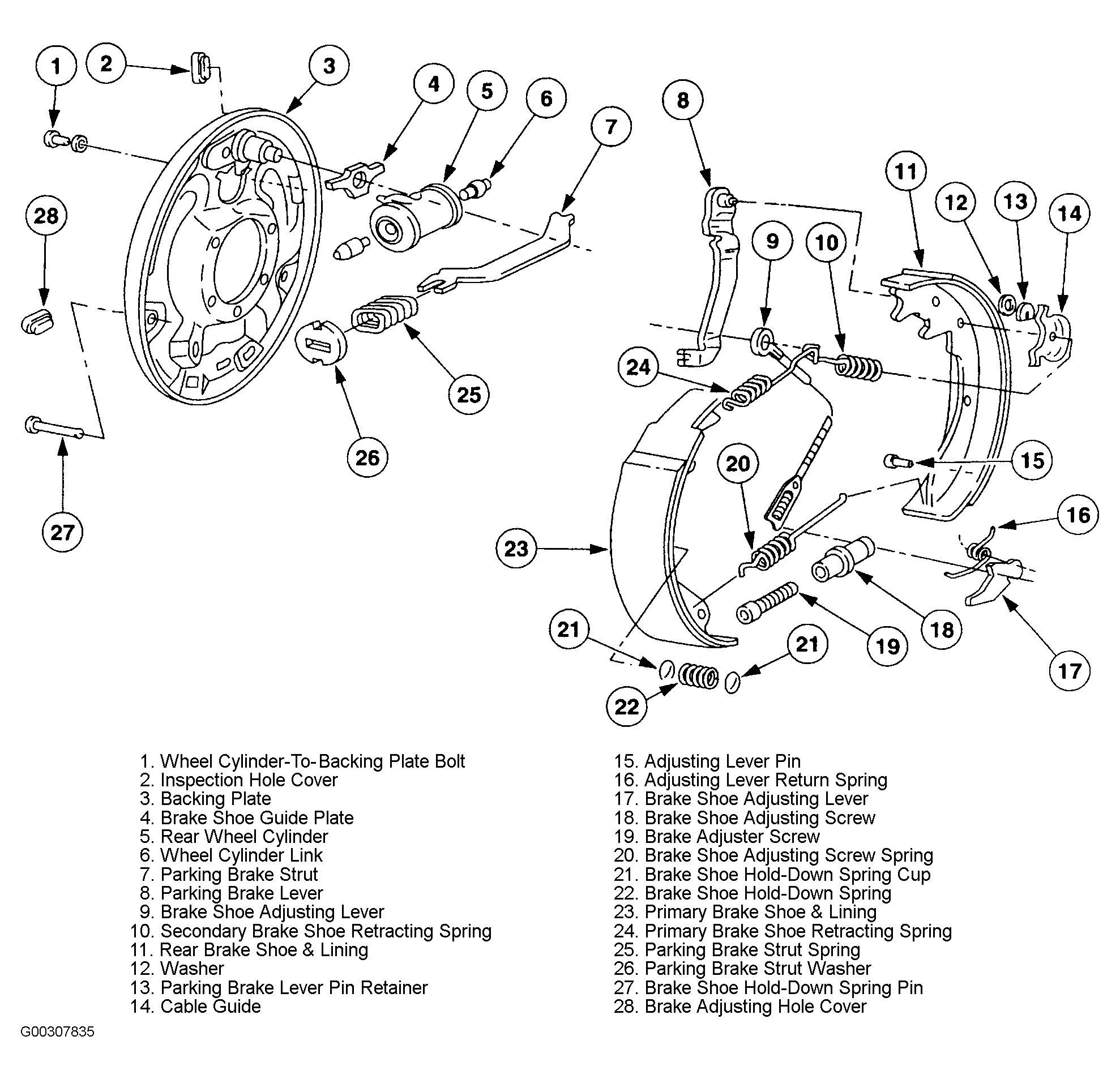

The drum brake system is the single anchor type, has active self-adjustment and is split front and rear hydraulically. See Fig 1.
